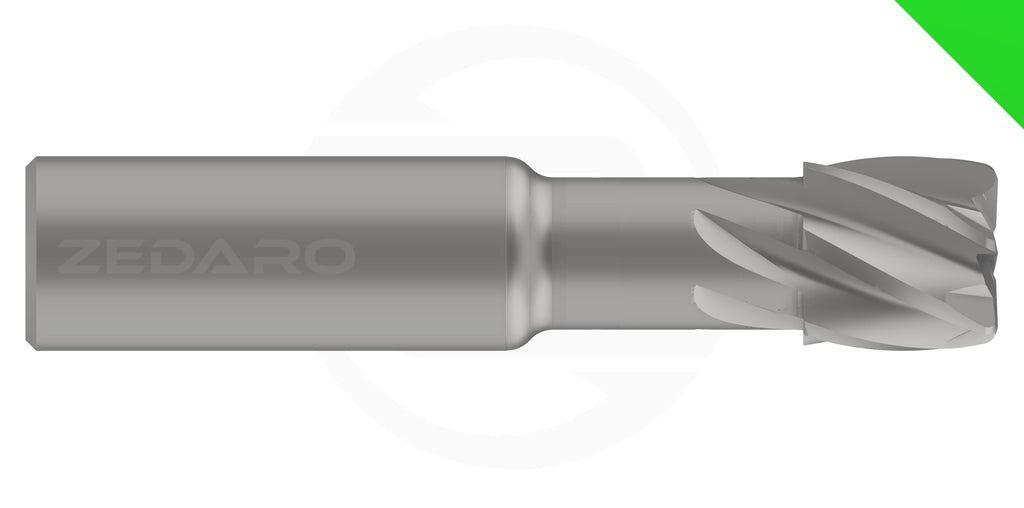

GRNDRIFTR-12.68R0.88-0643002-J25AB1 (0643002)


Price:
Sale price$86.22
Stock:
Re-stocking soon

Description

The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys.

The 'Drifter' line is for T-slotting; generating lateral slots/grooves in faces using the tool flank.

'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.

Tool Properties
Name GRNDRIFTR-12.68R0.88-0643002-J25AB1 (0643002)
EDP # 0643002
Material Wrought Aluminum
Application General T-Slot Milling (Drifter)
Form End Mill - Bull / Rounded Corner
Cutting Diameter 0.4992" 12.680 mm
Corner Radius 0.0346" 0.880 mm
Taper per Side 0.0°
Length of Cut 0.5000" 12.700 mm
Reach 1.1417" 29.000 mm
Minimum Extension 1.3" 32.0 mm
Maximum Extension 1.8" 44.5 mm
Shank Diameter h6 0.3750" 9.525 mm
Overall Length 2.5" 63 mm
Cutting Edges 6
