Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Banger' line is designed for aggressive roughing and machine tools capable of spindle speeds greater than 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

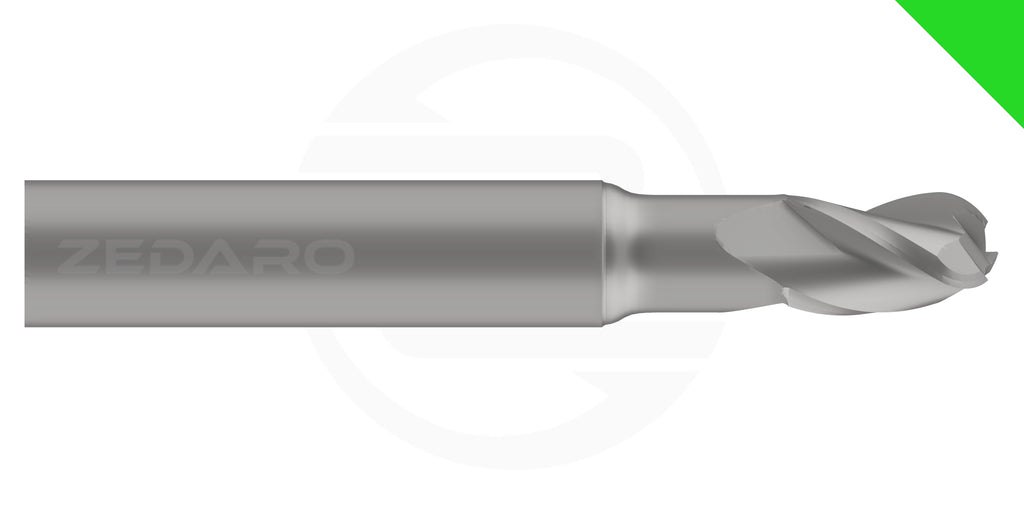

| Name | GRNBANGER-8.000R4.00-22.0ELA26.0-J25AB1 | |
| EDP # | 0643086 | |
| Material | Wrought Aluminum | Application | Rough 3D Milling >20k RPM (Banger) |
| Form | End Mill - Ball | |
| Cutting Diameter | 0.3150" | 8.000 mm |
| Corner Radius | 0.1575" | 4.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.5354" | 13.600 mm |
| Reach | 0.8661" | 22.000 mm |
| Minimum Extension | 1.0" | 26.0 mm |
| Maximum Extension | 1.9" | 49.2 mm |
| Shank Diameter h6 | 0.3750" | 9.525 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h9 | |
