The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Basher' line is designed for aggressive roughing and machine tools capable of spindle speeds up to 20K rpm. It incorporates our proprietary flute surface treatment producing a high lubricity finish specially optimized to handle a wide variety of cutting conditions. The design incorporates our special blend of fully variable geometry (including helix, pitch, spacing, location and size) as well as aggressive chip breakers designed to reduce chip size. This line of cutting tools is not designed to produce finish surfaces, but rather to achieve maximum material removal rates.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
|Material||Wrought Aluminum||Application||Rough 3D Milling w/ Chip Breakers <20k RPM (Basher)|

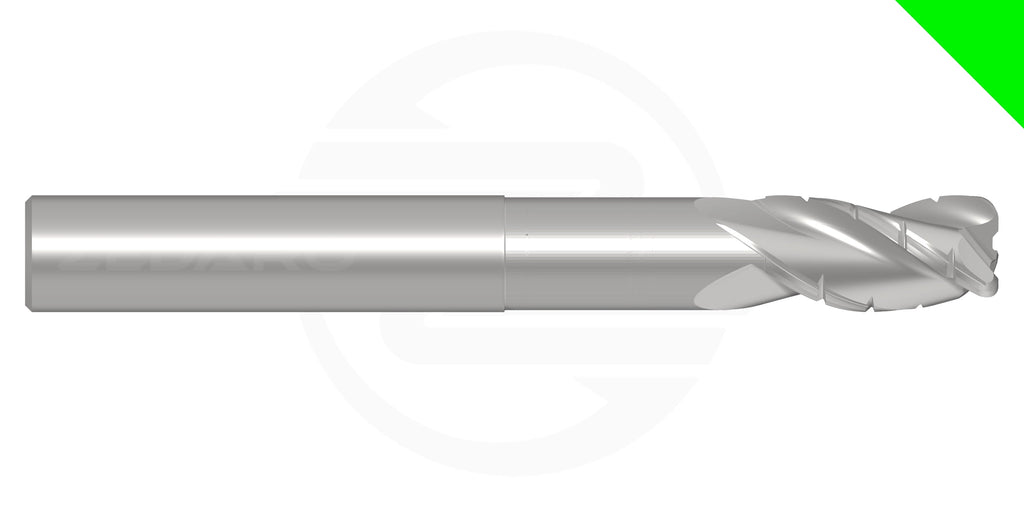

|Form||End Mill - Bull / Rounded Corner|
|Cutting Diameter||0.4724"||12.000 mm|
|Corner Radius||0.0787"||2.000 mm|
|Taper per Side||0.0°|
|Length of Cut||0.9449"||24.000 mm|
|Minimum Extension||2.0"||50.8 mm|
|Maximum Extension||2.4"||59.8 mm|
|Shank Diameter h6||0.4724"||12.000 mm|
|Overall Length||3.3"||84 mm|
