Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Engraver' line is for engraving, and is also suitable for chamfering and deburring.
'C' form tools are for chamfering and deburring, available in a large array of tip angles.
| Tool Properties | ||
|---|---|---|

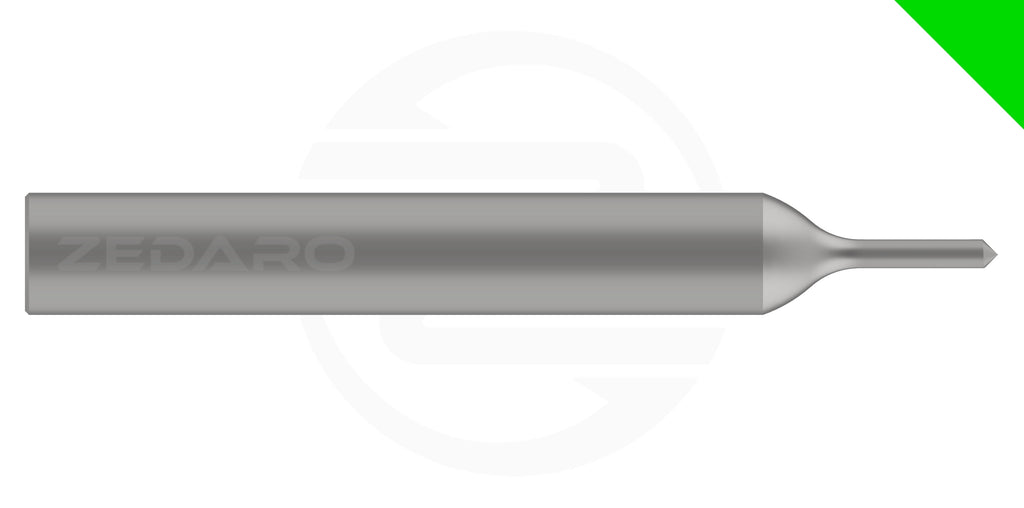

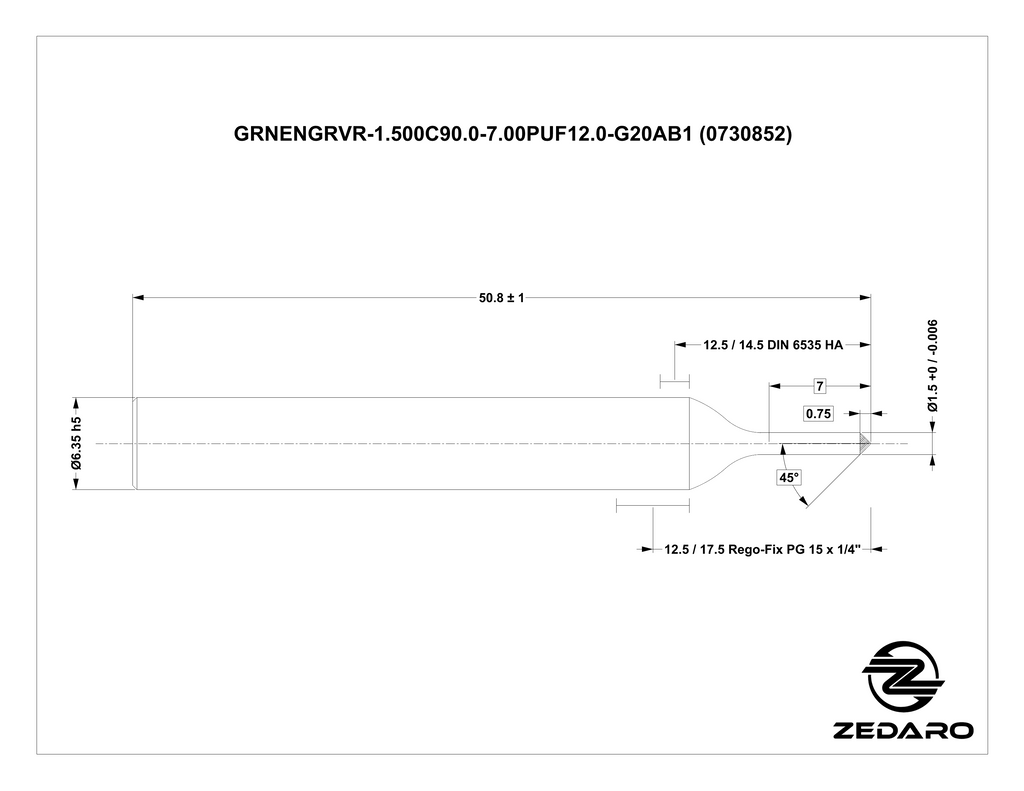

| Name | GRNENGRVR-1.500C90.0-7.00PUF12.0-G20AB1 | |
| EDP # | 0730852 | |
| Material | Wrought Aluminum | Application | Finish Chamfer/Deburr/Engrave (Engraver) |
| Form | Chamfer | |
| Cutting Diameter | 0.0591" | 1.500 mm |
| Total Tip Angle | 90.00° | |
| Taper per Side | 45.00° | |
| Length of Cut | 0.0295" | 0.750 mm |
| Reach | 0.2756" | 7.000 mm |
| Minimum Extension | 0.5" | 12.0 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 1 | |
| Tolerance Class | h6 | |
