Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
'S' form tools are for slotting and grooving, using the tool flank exclusively to produce geometry.
| Tool Properties | ||
|---|---|---|

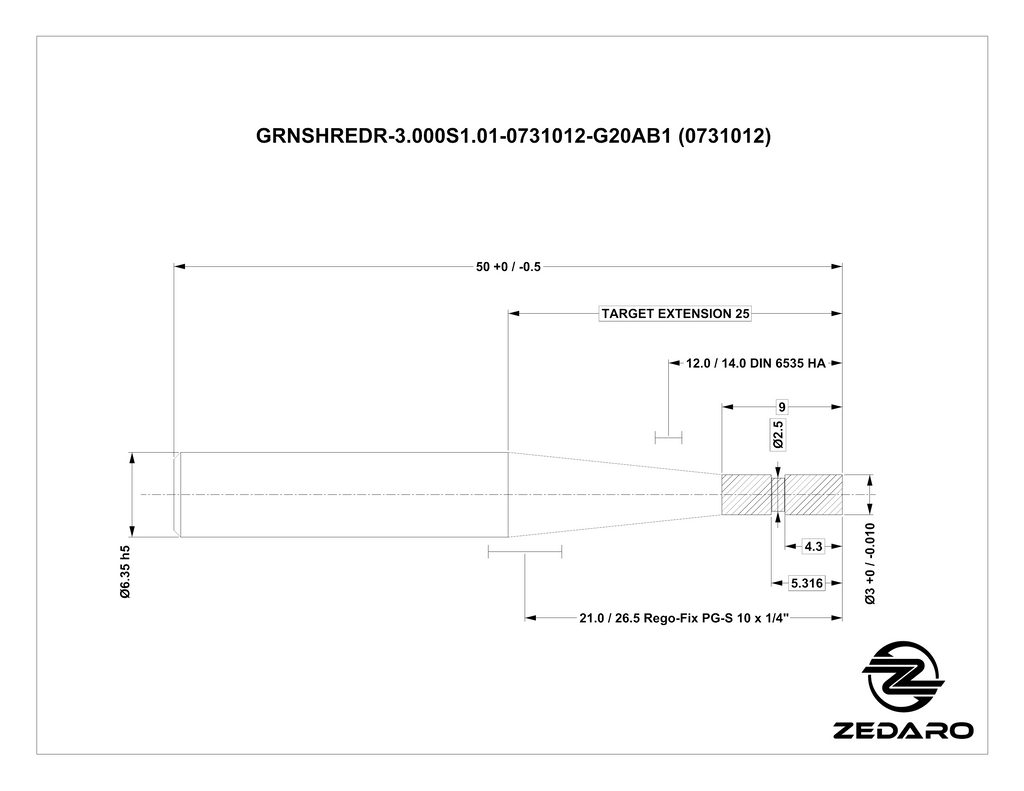

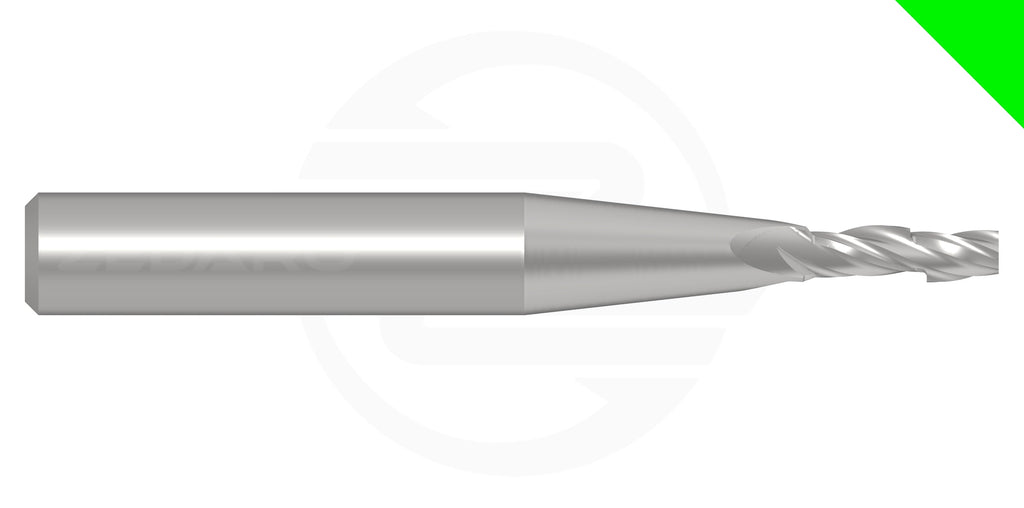

| Name | GRNSHREDR-3.000S1.01-3STEPFORM-G20AB1 | |
| EDP # | 0731012 | |
| Material | Wrought Aluminum | Application | General Milling >20k RPM (Shredder) |
| Form | Slot Mill | |
| Cutting Diameter | 0.1181" | 3.000 mm |
| Slot Thickness | 0.0398" | 1.010 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3543" | 9.000 mm |
| Reach | 0.3937" | 10.000 mm |
| Minimum Extension | 1.0" | 26.0 mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
