Description
Material Number: 5232305000
Article Number: 52323050
This product is priced singly and comes in packs of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit N.KG.5,0.30°.Z2.HA.EL80 TI1000 Ball Nosed Cutter 220° 5232305000 (0731041) | |
| EDP # | 0731041 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 28.6 g |

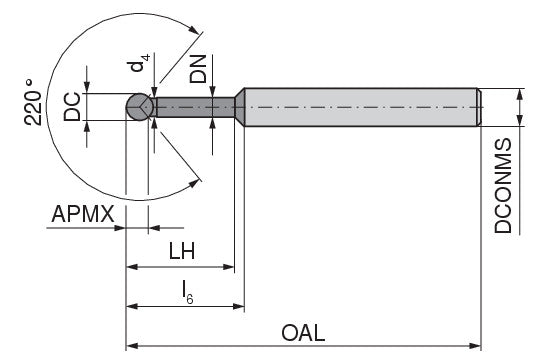

| L6 | 1.1024 | 28 mm |
| D4 | 0.1693 | 4.3 mm |
Suitable Materials:
