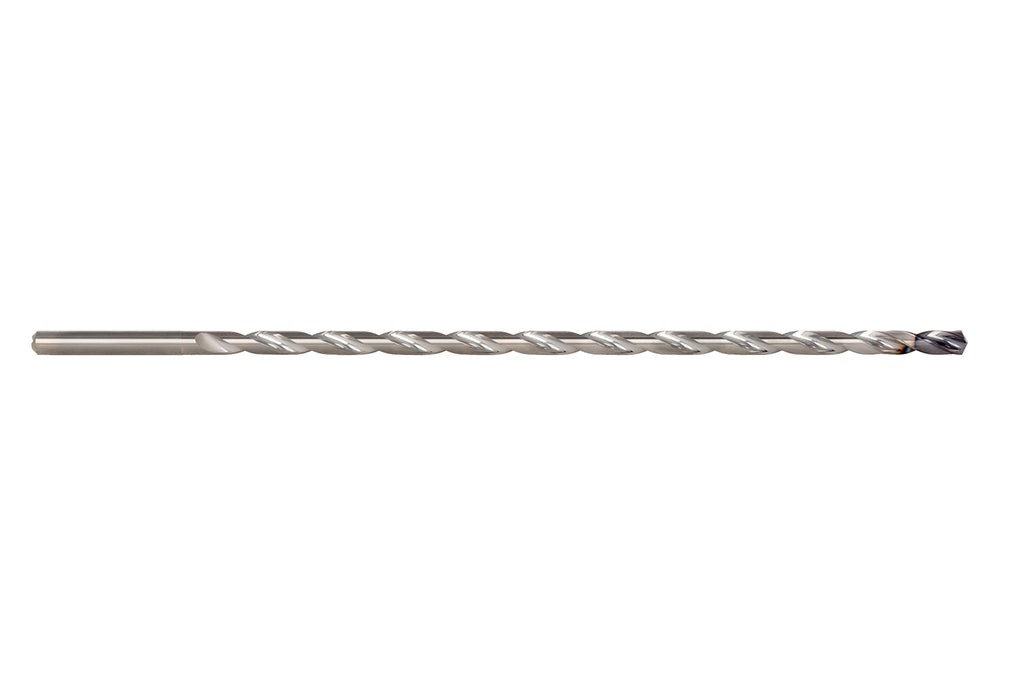

Mapal SCD701-0350-2-4-137HA30-HP400 MEGA-Deep-Drill-Steel 31459767 (0734907)


Price:
Sale price$690.40
Stock:
Not in stock - Available to order

Description

Mapal Order Number: 31459767

Mapal, Founded in Aalen, Germany in 1950

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Mapal SCD701-0350-2-4-137HA30-HP400 MEGA-Deep-Drill-Steel 31459767
EDP # 0734907
Drilling Depth 30xD
d1 0.1378" 3.500 mm
Drilling Depth Value 4.1339" 105.000 mm
d2 0.1575" 4.000 mm
l1 6.2205" 158.000 mm
l2 4.9606" 126.000 mm
l3 4.7244" 120.000 mm
l4 1.1024" 28.000 mm
Cooling Internal Cooling
Number Of Cutting Edges (z) 2
Shank Tolerance h6
Bore Tolerance ≥ IT 9
Shank Type HA
Tip Angle 137°
Material Group

Product Features:

- The new MEGA-Deep-Drill-Steel is a deep drill for highly efficient deepdrilling applications on steel and cast-iron materials. Due to its innovative geometrical and cutting material design, the deep drill is ideallyadapted to high feed rates and maximum productivity in bore machining up to 40xD.

Technical Reference Files:

Technical drawing in tif

Technical drawing in dxf

3D envelope in stp

Brochure MEGA-Deep-Drill-Steel

Tool Form:

'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
