Description
Ceratizit Article Number: 1087532504
Ceratizit Material Number: 12546871
Ceratizit Komet Number (Unpacked): U45 33250
Ceratizit Komet Number (Packed): U4533250
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB PENTRON 40X68/W8032/32,5/165/R KOMET Pentron - Indexable Insert Drill 1087532504 | |
| EDP # | 0756989 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 42.0 oz | 1192 g |

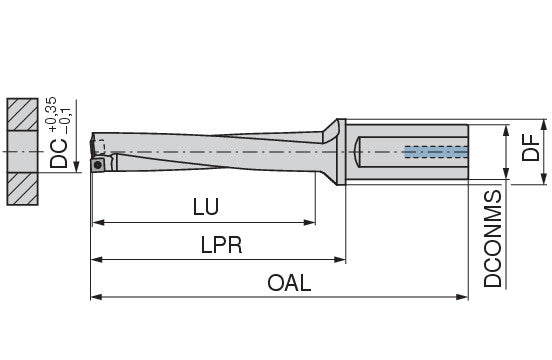

| Cutting diameter / DC | 1.2795" | 32.500 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 10.1575" | 258.000 mm |
| Protruding length / LPR | 7.4803" | 190.000 mm |
| Usable length / LU | 6.4961" | 165.000 mm |
| Insert | SOGX 100408 | |
| torque moment | 2.8 Nm | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
