Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

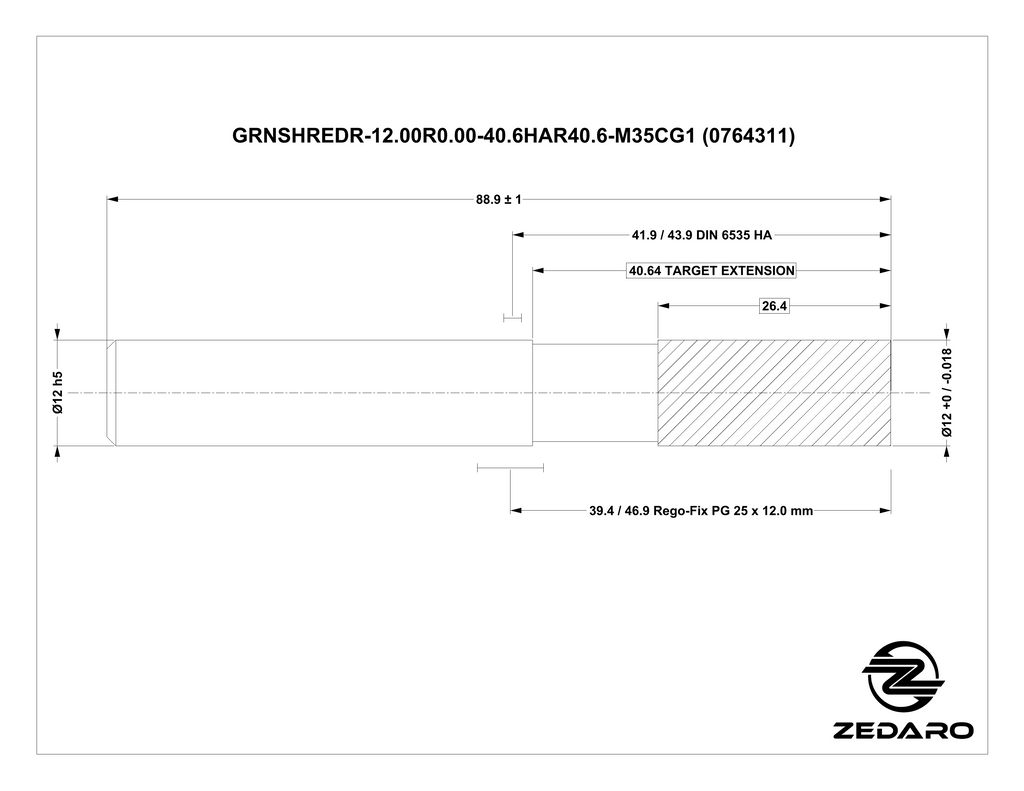

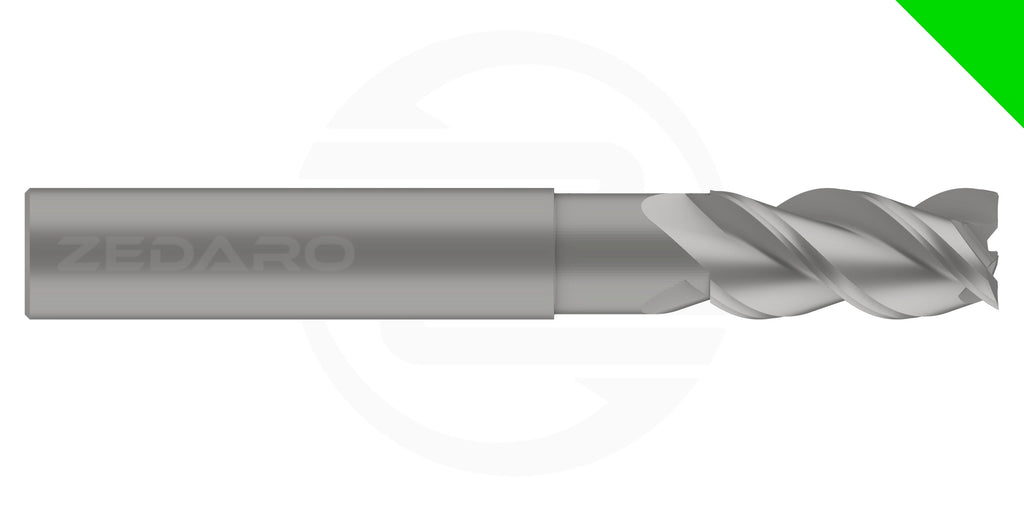

| Name | GRNSHREDR-12.00R0.00-40.6HAR40.6-M35CG1 | |
| EDP # | 0764311 | |
| Material | Wrought Aluminum | Application | General Milling >20k RPM (Shredder) |
| Form | End Mill - Flat | |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 1.0394" | 26.400 mm |
| Reach | 1.5984" | 40.600 mm |
| Minimum Extension | 1.6" | 40.6 mm |
| Maximum Extension | 2.8" | 70.9 mm |
| Shank Diameter h5 | 0.4724" | 12.000 mm |
| Overall Length | 3.5" | 89 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
