Ceratizit W.KF.10,0/10,0.25°.Z1.R/R.HA.K55 Single Flute Cutter 50610105 (0764617)


Price:
Sale price$208.28
Stock:
Not in stock - Available to order

Description

Ceratizit Article Number: 50610105

Ceratizit Material Number: 5061010500

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Properties
Name Ceratizit W.KF.10,0/10,0.25°.Z1.R/R.HA.K55 Single Flute Cutter 50610105
EDP # 0764617
Weight (1 pc.) 3.0 oz 83.1 g

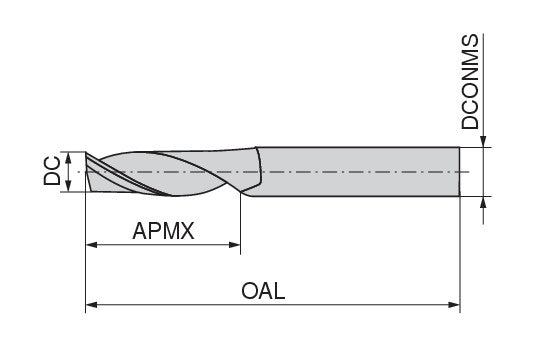

Cutting diameter / DC h10 0.3937" 10.000 mm
Depth of cut maximum / APMX 2.1654" 55.000 mm
Protruding length / LPR 2.3622" 60.000 mm
Overall length / OAL 3.9370" 100.000 mm
Mounting spigot diameter / DCONMS h6 0.3937" 10.000 mm
Corner chamfer width / CHW 0.0031" 0.080 mm
Peripheral effective cutting edge count / ZEFP 1
Coating name / Grade (Ceratizit) / COATN blank


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
