Description
Ceratizit Article Number: 50362560
Ceratizit Material Number: 5036256000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

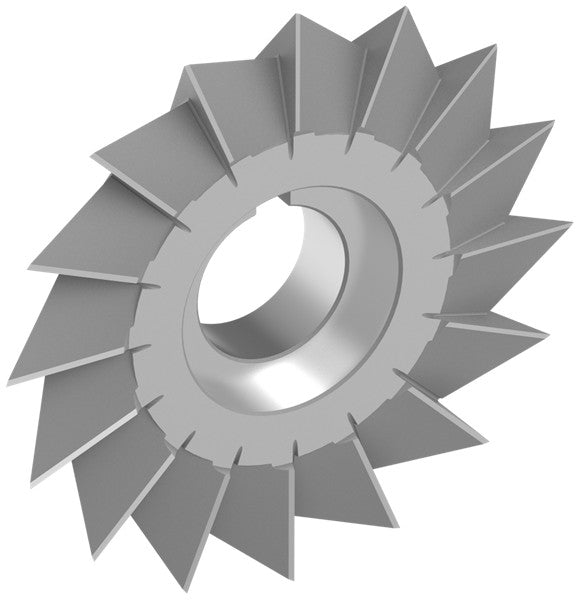

| Name | Ceratizit N.WSF.60°.125X40.Z26 Shell Type Single Angle Milling Cutter HSS 50362560 | |
| EDP # | 0769414 | |
| Weight (1 pc.) | 69.0 oz | 1963 g |

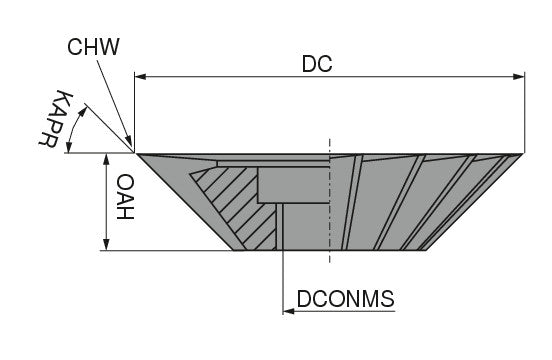

| Tool cutting edge angle / KAPR | 60 ° | |
| Cutting diameter / DC | 49213.0000" | 1250010.200 mm |
| Overall height / OAH | 1.5748" | 40.000 mm |
| Mounting spigot diameter / DCONMS | 12598.0000" | 319989.200 mm |
| Corner chamfer width / CHW | 118.0000" | 2997.200 mm |
| Peripheral effective cutting edge count / ZEFP | 28 | |
| Coating name / Grade (Ceratizit) / COATN | blank | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
