Description
Ceratizit Article Number: 52868100
Ceratizit Material Number: 5286810000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

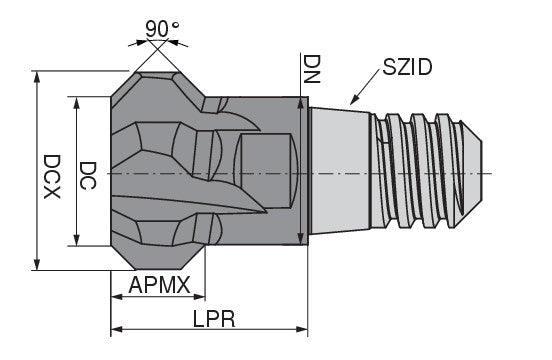

| Properties | ||
|---|---|---|

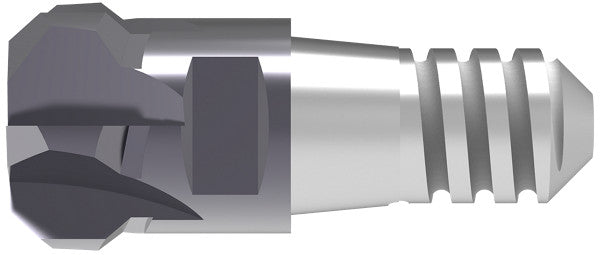

| Name | Ceratizit MUC-N.EF.10,0.0°.Z6.KLG6 TI1100 MultiChange Deburring Cutter 52868100 | |
| EDP # | 0771385 | |
| Weight (1 pc.) | 1.0 oz | 16.6 g |
| Product-Carbon-Footprint | B | |
| Cutting diameter / DC | 2.9528" | 75.000 mm |
| Cutting diameter maximum / DCX | 0.3937" | 10.000 mm |
| nominal size / SZID | 06 | |
| Depth of cut maximum / APMX | 1.8898" | 48.000 mm |
| Neck Diameter / DN | 0.3150" | 8.000 mm |
| Protruding length / LPR ±0,02 | 0.4331" | 11.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Torque maximum / TQX | 5 Nm | |
| Drive size / DRVS | 0.2362" | 6.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1100 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
