Description
Ceratizit Article Number: 52869162
Ceratizit Material Number: 5286916200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

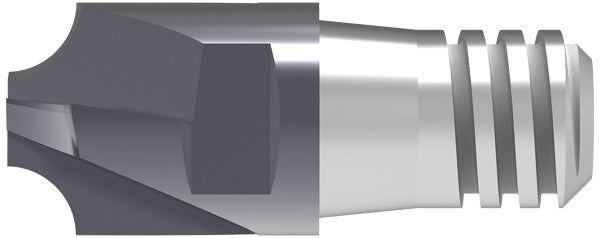

| Name | Ceratizit MUC-N.VR.16,0.20°.Z4.R5,0.KLG12 TI1100 MultiChange Quarter-round Milling Cutter 52869162 | |
| EDP # | 0771399 | |
| Weight (1 pc.) | 2.0 oz | 60.3 g |
| Product-Carbon-Footprint | B | |

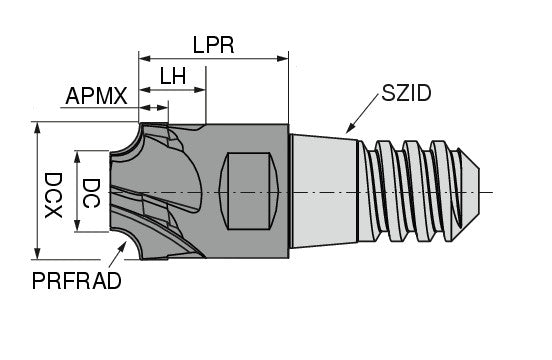

| Cutting diameter / DC | 22.5984" | 574.000 mm |
| Cutting diameter maximum / DCX | 0.6299" | 16.000 mm |
| nominal size / SZID | 12 | |
| Profile radius / PRFRAD ±0,03 | 0.1969" | 5.000 mm |
| Depth of cut maximum / APMX | 0.3543" | 9.000 mm |
| Protruding length / LPR ±0,02 | 0.7874" | 20.000 mm |
| Peripheral effective cutting edge count / ZEFP | 4 | |
| Torque maximum / TQX | 20 Nm | |
| Head length / LH | 0.5118" | 13.000 mm |
| Drive size / DRVS | 0.5118" | 13.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Ti1100 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
