Description
Ceratizit Article Number: 53004015
Ceratizit Material Number: 5300401500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

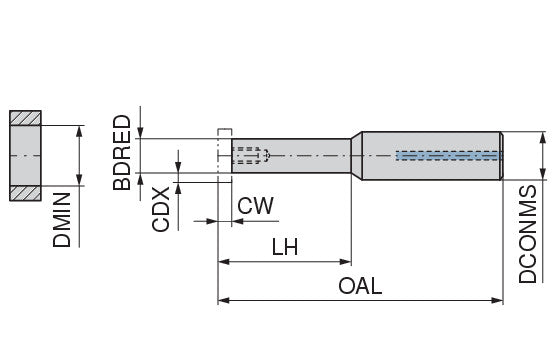

| Properties | ||
|---|---|---|
| Name | Ceratizit MINIMILL.10.HA.16.15,2 ModuSet - Circular Milling cutter, Extra Short 53004015 | |
| EDP # | 0771493 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 42.4 g |
| Size | 10 | |
| Head length / LH | 5.9843" | 152.000 mm |
| Mounting spigot diameter / DCONMS h6 | 3937.0000" | 99999.800 mm |
| Overall length / OAL | 2.3622" | 60.000 mm |
| Body diameter, reduced / BDRED | 2362.0000" | 59994.800 mm |
| Bore Ø, min., Range / DMIN | 3823.5039" | 97117.000 mm |
| Cutting depth maximum range / CDX | 56.1024" | 1425.000 mm |
| Cutting width range / CW | 13.1890" | 335.000 mm |
| torque moment | 2 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
