Description
Ceratizit Article Number: 53006480
Ceratizit Material Number: 5300648000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

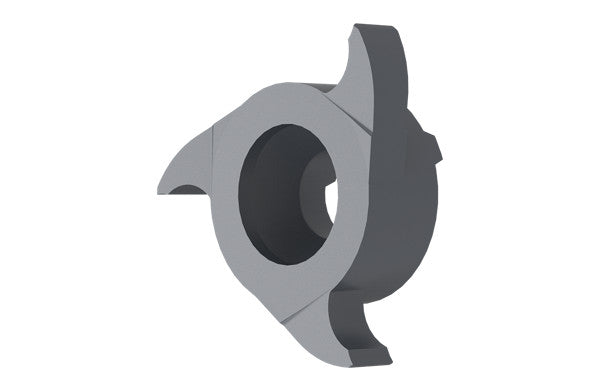

| Name | Ceratizit MINIMILL.22.0,84.1°.Z3 CWX500 ModuSet - Milling Insert For circlip Grooves 53006480 | |
| EDP # | 0771519 | |
| Weight (1 pc.) | 0.4 oz | 12.0 g |
| Size | 22 | |

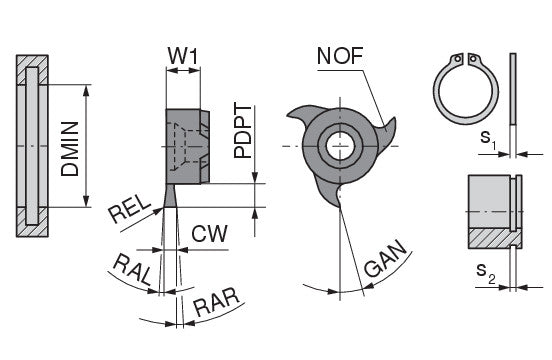

| S2 - CIRCLIP H13 | 0.3150" | 8.000 mm |
| Cutting width / CW -0.02 | 3.3071" | 84.000 mm |
| S1 - CIRCLIP | 0.2756" | 7.000 mm |
| Minimum bore diameter / DMIN | 0.8661" | 22.000 mm |
| Profile depth insert / PDPT | 0.6693" | 17.000 mm |
| Insert width / W1 | 2.2441" | 57.000 mm |
| Flute count / NOF | 3 | |
| Coating name / Grade (Ceratizit) / COATN | CWX500 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
