Description
Zedaro UID: 0771566
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

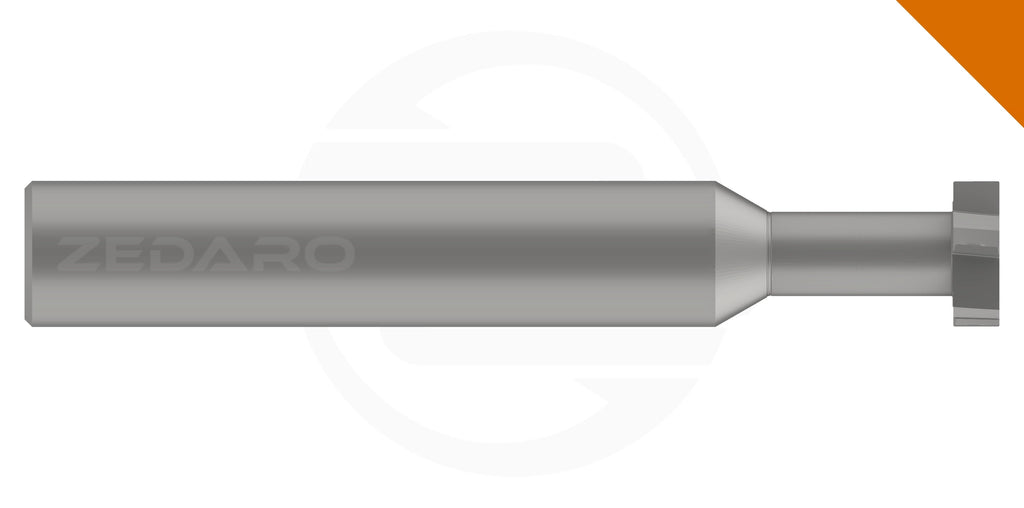

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro ORGCHIRPR-9.470Z1.50-1STEPFORM-J25AB1 | |
| EDP # | 0771566 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) | |
| Weight (1 pc.) | 2.0 oz | 70.0 g |
| Gauge Diameter | 0.3728" | 9.470 mm |
| Gauge Distance (from tip) | 0.0591" | 1.500 mm |
| Application | Finish Flank Milling <20k RPM (Chirper) | |
| Form | Contour / Profile | |
| Shank Diameter (h6) | 0.3750" | 9.520 mm |
| Cutting Edges | 4 | |
| Tolerance Class | h6 | |
| Length of Cut | 0.1181" | 3.000 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.5906" | 15.000 mm |
| Minimum Extension | 0.7283" | 18.500 mm |
| Maximum Extension | 1.7520" | 44.500 mm |
Product Features:
- The 'Orange' line of tooling is designed specifically for cutting nickel-based high temperature superalloys.
- The 'Chirper' line is a tight-tolerance 3D finishing tool which is intended for flanking; primarily using the side of the tool to generate final part geometry. This line is intended for machine tools with spindles capable of speeds up to 20K rpm.
- 'Z' form tools comprise of all arbitrary forms which do not match any other form category. These may be drills, mills, etc. where the key feature is accuracy of form.
- This is a custom design which does not follow standard proportions.
