Description
Zedaro UID: 0771919
Zedaro is a premium tooling brand from Canada.
This product is priced singly and comes in packs of 1.

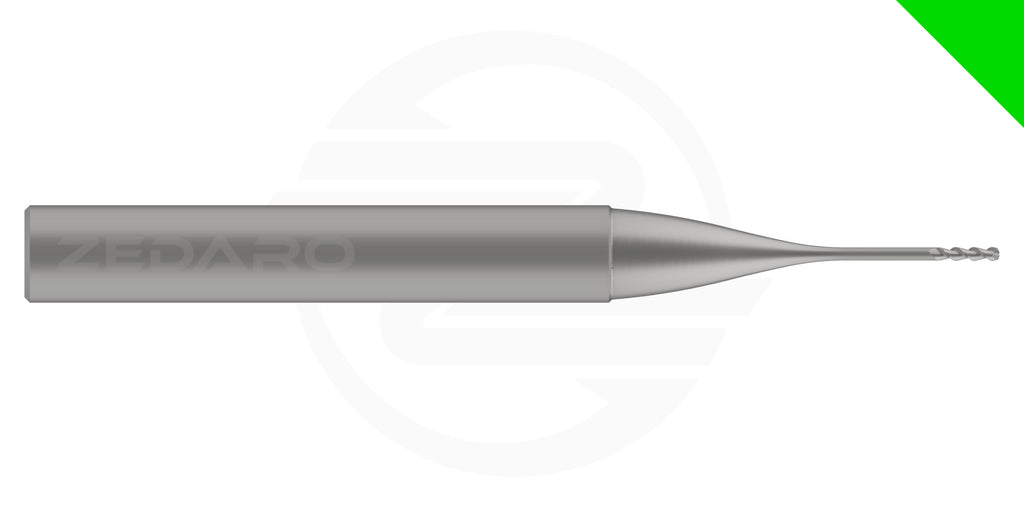

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Zedaro GRNSHREDR-0.900R0.00-10.0LAM25.4-G25CG1 | |
| EDP # | 0771919 | |
| Workpiece Material(s) | Aluminum (Green) | |
| Weight (1 pc.) | 1.0 oz | 31.0 g |
| Cutting Diameter | 0.0354" | 0.900 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Application | General Milling >20k RPM (Shredder) | |
| Form | R-FLAT | |
| Shank Diameter (h5) | 0.2500" | 6.350 mm |
| Cutting Edges | 2 | |
| Tolerance Class | h7 | |
| Length of Cut | 0.1457" | 3.700 mm |
| Overall Length | 2.5000" | 63.500 mm |
| Reach | 0.3937" | 10.000 mm |
| Minimum Extension | 1.0000" | 25.400 mm |
| Maximum Extension | 2.1260" | 54.000 mm |
Product Features:
- The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
- The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
- 'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
- The code 'LAM' refers to the bird species 'Lammer'.
Technical Reference Files:
Company History:
Zedaro has been producing cutting edge technology for over a decade.
