Description
Ceratizit Article Number: 1061305950
Ceratizit Material Number: 15083030
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 1B0053-05950.h7.8XD.135.R02.HA.C95 WTX High-performance drill, Factory Standard Quattro 1061305950 | |
| EDP # | 0778266 | |
| Weight (1 pc.) | 1.0 oz | 31.6 g |
| Product-Carbon-Footprint | B | |

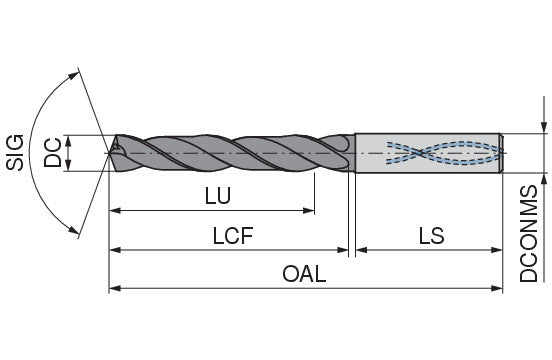

| Cutting diameter / DC h7 | 0.2343" | 5.950 mm |
| Cutting Ø - inch / DC | 15/64 | |
| Overall length / OAL | 3.7402" | 95.000 mm |
| Length chip flute / LCF | 2.2441" | 57.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.2362" | 6.000 mm |
| Shank length / LS | 1.4173" | 36.000 mm |
| Usable length / LU | 1.8898" | 48.000 mm |
| SIG / SIG | 135 ° | |
| Cutting diameter - tolerance | h7 | |
| Coating name / Grade (Ceratizit) / COATN | DPA74S | |
| Flute count / NOF | 2.0000" | 50.800 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
