Description
Ceratizit Article Number: 4040511900
Ceratizit Material Number: 14735119
Ceratizit Komet Number (Unpacked): W07.001190C0002
Ceratizit Komet Number (Packed): W07001190C0002
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit N.11,90.H7.A.~8093-2 CoreLine Machine Reamers Sim. DIN 8093-A / -B 4040511900 | |
| EDP # | 0783243 | |
| Weight (1 pc.) | 7.0 oz | 194 g |
| Product-Carbon-Footprint | B | |

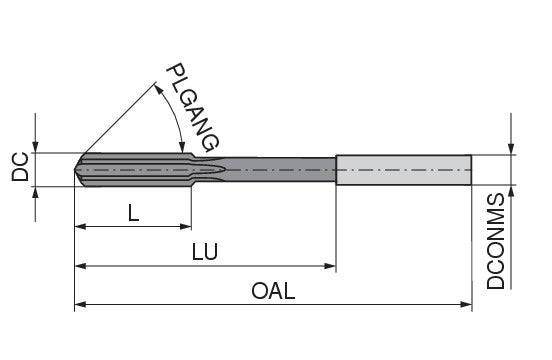

| Cutting diameter / DC H7 | 0.4685" | 11.900 mm |
| Overall length / OAL | 5.9449" | 151.000 mm |
| Cutting edge length / L | 1.7323" | 44.000 mm |
| Usable length / LU | 3.9370" | 100.000 mm |
| Mounting spigot diameter / DCONMS h7 | 0.3937" | 10.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Neck Diameter / DN | 0.4567" | 11.600 mm |
| Plug length / PLGL | 0.0315" | 0.800 mm |
| Coating name / Grade (Ceratizit) / COATN | uncoated | |
| PLGANG / PLGANG | 45 ° | |
| Minimum Extension (DIN 6535 HA) | 4.2913" - 4.3701" | 109.000 - 111.000 mm |
Tool Form:
'H' form tools are intended for reaming; where they cannot generate a hole or cut laterally but use their lead-in and flank to improve pre-existing hole quality.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
