Description

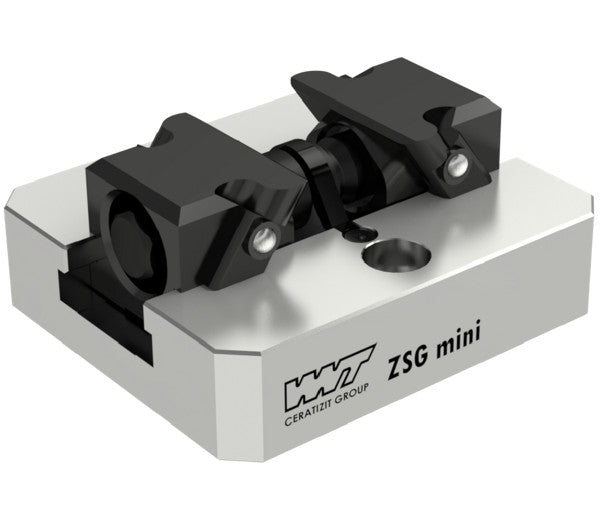

ZSGMINI.ZS.OSB.70.80 CENTRIC VICE
Mat No: 8091207000, Article No: 8091207000
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT ZSGMINI.ZS.OSB.70.80 CENTRIC VICE 8091207000 (0650371) | |
| EDP # | 0650371 | |
| Weight | 33.2 oz | 940.0 g |

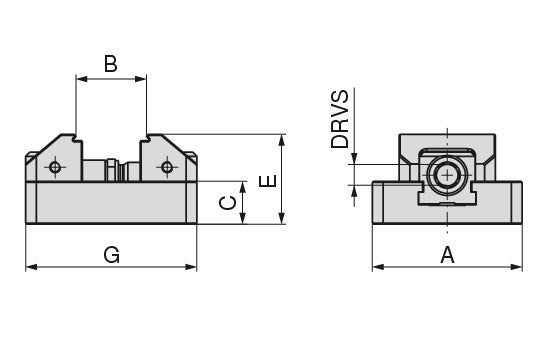

| A | 2.7559 inch | 70 mm |
| G | 3.1496 inch | 80 mm |
| B | 7 - 57 mm | |
| C | 0.7874 inch | 20 mm |
| E | 1.6535 inch | 42 mm |
| Maximum clamping force MXC | 16 kN | |
| Drive size DRVS | 0.4331 inch | 11 mm |
| Designation | ZSGMINI.ZS.OSB.70.80 | |
Application & Properties:
