Description
Ceratizit Article Number: 10215095
Ceratizit Material Number: 1021509500
Product discontinued! Unavailable if out of stock.
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WTL.9.50.R.10D.DIN340 F.NIT Twist drills, 340, Long 10215095 | |
| EDP # | 0654437 | |
| Weight (1 pc.) | 2.0 oz | 68.4 g |

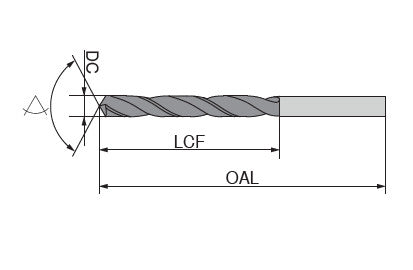

| Cutting diameter / DC h8 | 0.3740" | 9.500 mm |
| Overall length / OAL | 6.8898" | 175.000 mm |
| Length chip flute / LCF | 4.5276" | 115.000 mm |
| Mounting spigot diameter / DCONMS | 0.3740" | 9.500 mm |
| Shank length / LS | 2.3622" | 60.000 mm |
| Usable length / LU | 3.7402" | 95.000 mm |
| Coating name / Grade (Ceratizit) / COATN | F.-nit | |
| Flute count / NOF | 2 | |
| SIG / SIG | 130 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
