Description

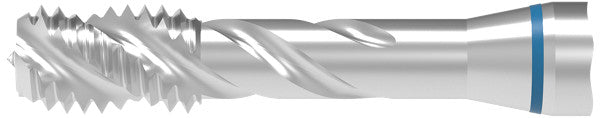

SALOREX.M5.ISO3-6GDIN371-C HSSE MACHINE TAP SL
Mat No: 2213405000, Article No: 22134050
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

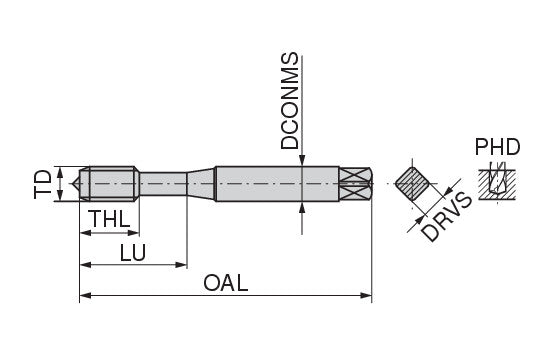

| Properties | ||
|---|---|---|
| Name | CERATIZIT SALOREX.M5.ISO3-6GDIN371-C HSSE MACHINE TAP SL 2213405000 (0655391) | |
| EDP # | 0655391 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.5 oz | 13.6 g |
| Thread diameter range TD/d1 | M5 mm | |
| Thread pitch TP/p | 0.0315 inch | 0.8 mm |
| Overall length OAL/l1 | 2.7559 inch | 70 mm |
| Mounting spigot diameter DCONMS/d2 | 0.2362 inch | 6 mm |
| Drive size DRVS/a | 0.1929 inch | 4.9 mm |
| Premachined hole diameter PHD/d0 | 0.1654 inch | 4.2 mm |
| Thread cutting part length THL/l2 | 0.315 inch | 8 mm |
| Usable length LU/l3 | 0.9843 inch | 25 mm |
| Flutes | 3 | |
| Thread tolerance class TCTR | ISO 3 6G | |
Application & Properties:
Suitable Materials:
