Description

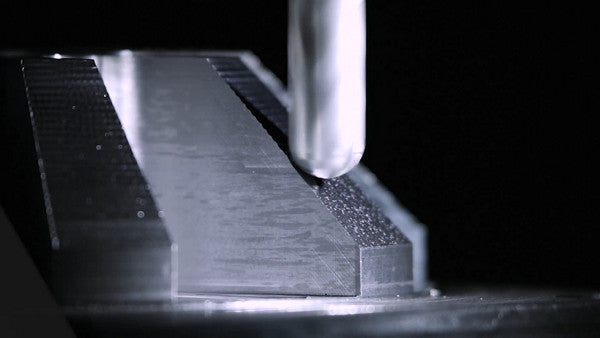

SL.N.RD.5,0.30°.Z2.HA.K DPB72S SOLID CARBIDE BALL NOSED MILLING CUTTER
Mat No: 12381763, Article No: 5096305125
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT SL.N.RD.5,0.30°.Z2.HA.K DPB72S SOLID CARBIDE BALL NOSED MILLING CUTTER 12381763 (0657607) | |
| EDP # | 0657607 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.7 oz | 18.4 g |
| Peripheral effective cutting edge count ZEFP/Z | 2 | |
| Cutting diameter DC/d1 f8 | 0.1969 inch | 5 mm |
| Depth of cut maximum APMX/l2 | 0.3543 inch | 9 mm |
| Neck Diameter DN/d3 | 0.189 inch | 4.8 mm |
| Head length LH/l3 | 0.6299 inch | 16 mm |
| Protruding length LPR/l5 | 0.7087 inch | 18 mm |
| Overall length OAL/l1 | 2.126 inch | 54 mm |
| Mounting spigot diameter DCONMS/d2 h6 | 0.2362 inch | 6 mm |
Application & Properties:
Suitable Materials:
