Description

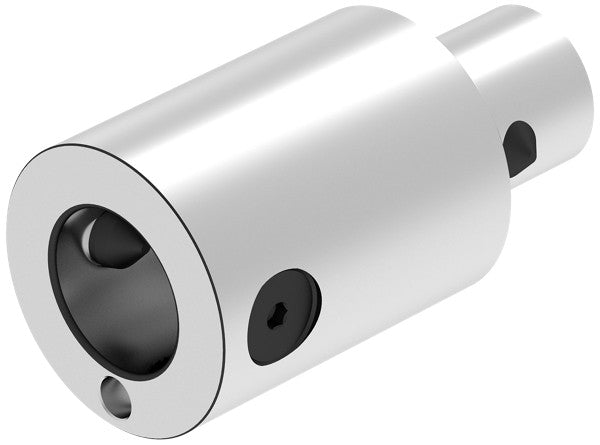

V.70.ABS32 EXTENSION
Mat No: 12543785, Article No: 8420907089
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT V.70.ABS32 EXTENSION 12543785 (0660770) | |
| EDP # | 0660770 | |
| Weight | 15.9 oz | 450.0 g |
| Machine interface size | ABS 32 | |

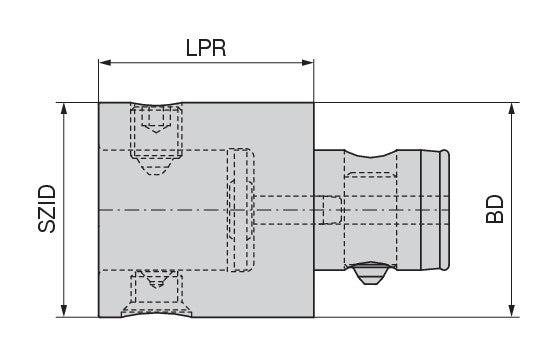

| Neck diameter (BD) BD/D2 | 1.2598 inch | 32 mm |
| Protruding length LPR/A | 2.7559 inch | 70 mm |
| nominal size SZID/Size | ABS 32 | |
| Flange diameter DF/D5 | 1.2598 inch | 32 mm |
| Clamping diameter (DCONWS) DCONWS/d1 | 0.6299 inch | 16 mm |
| Mounting spigot diameter DCONMS/D6 | 0.6299 inch | 16 mm |
| Overall length OAL/L3 | 3.6614 inch | 93 mm |
