Description
Ceratizit Article Number: 6287103200
Ceratizit Material Number: 12540465
Ceratizit Komet Number (Unpacked): G03 70330
Ceratizit Komet Number (Packed): G0370330
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

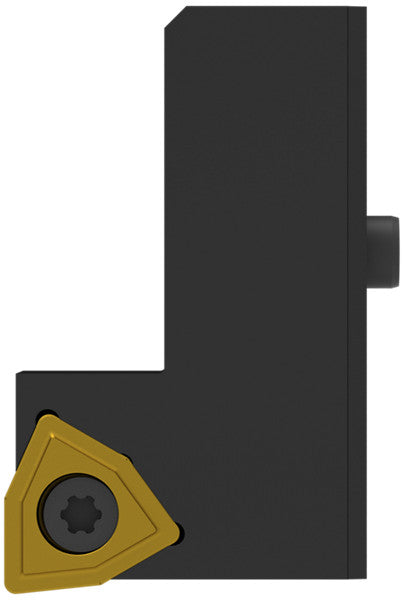

| Name | Ceratizit INSERT HOLDER VD Ø24-32MM 90° W2918 SpinTools Tool Twin G01 6287103200 | |
| EDP # | 0660906 | |
| Workpiece Material(s) | Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 20.0 g |
| Product-Carbon-Footprint | E | |
| Productsystem | Twin G01 | |
| Insert | WO.X 0403.. | |

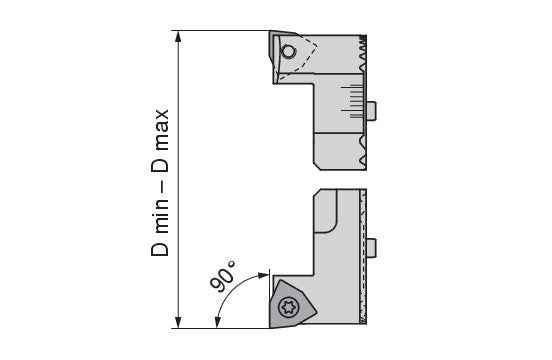

| Dmin - Dmax | 24 - 32 | |
| Cutting diameter maximum / DCX | 1.2598" | 32.000 mm |
| Cutting diameter minimum / DCN | 0.9449" | 24.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
