Description
Material Number: 12548398
Article Number: 1082310611
Komet Number (Unpacked): W29 34110.0450
Komet Number (Packed): W29341100450
This product is priced singly and comes in packs of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

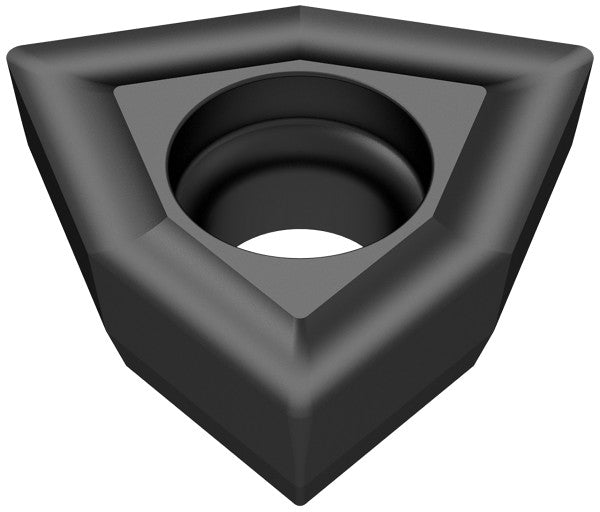

| Name | Ceratizit WOEX 06T304-11 BK50 Indexible Insert 12548398 (0661271) | |
| EDP # | 0661271 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |
| Cutting edge length L | 0.2598 inch | 6.6 mm |
| designation | 06T304 | |
| Inscribed circle diameter IC | 0.3937 inch | 10 mm |
| Fixing hole diameter D1 | 0.1594 inch | 4.05 mm |
| Insert thickness S | 0.1496 inch | 3.8 mm |
| Corner radius RE | 0.0157 inch | 0.4 mm |
Suitable Materials:
