Description

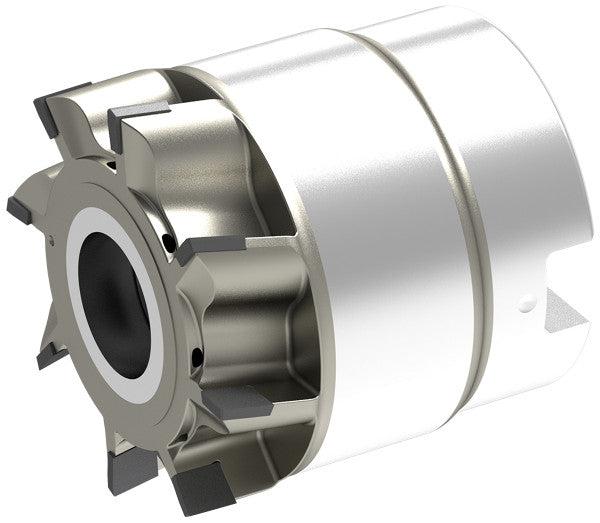

W.A.50,0.Z16.R.L40.IK PKD PCD SHELL MILLING CUTTER
Mat No: 14414332, Article No: 5002125016
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT W.A.50,0.Z16.R.L40.IK PKD PCD SHELL MILLING CUTTER 14414332 (0682178) | |
| EDP # | 0682178 | |
| Weight | 14.5 oz | 412.0 g |

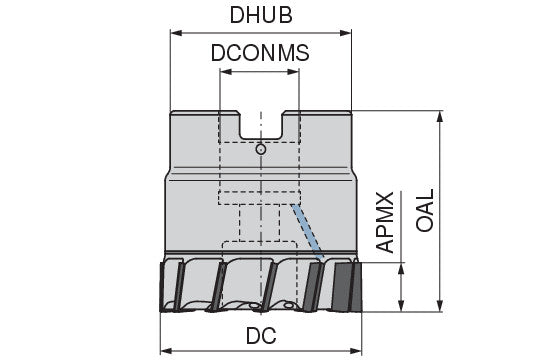

| Cutting diameter DC/d1 | 1.9685 inch | 50 mm |
| Depth of cut maximum APMX/a | 0.1969 inch | 5 mm |
| Face mounted insert count ZNF/z | 16 | |
| Overall length OAL/A | 1.5748 inch | 40 mm |
| Hub diameter DHUB/d3 | 1.6142 inch | 41 mm |
| Mounting spigot diameter DCONMS/d2 H6 | 0.8661 inch | 22 mm |
Application & Properties:
