Description
HCR.SC.1,0.50°.Z4.R.HA.EL DPX62U CARBIDE END MILL WITH EDGE BREAK Radius accuracy ± 0.005 mm T x = maximum depth of cut DC Tolerance up to Ø 6 mm: 0/-0.01 mm from Ø 6 mm: 0/ -0.02 mm
Mat No: 5360641000, Article No: 53606410
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

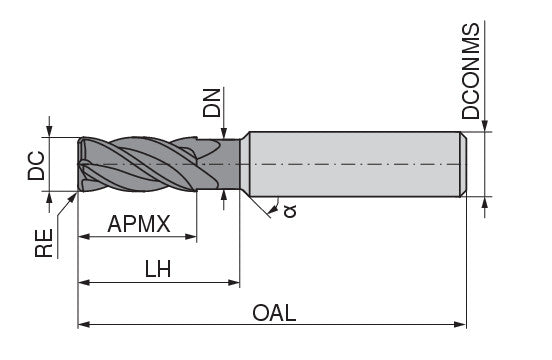

| Properties | ||
|---|---|---|
| Name | CERATIZIT HCR.SC.1,0.50°.Z4.R.HA.EL DPX62U CARBIDE END MILL WITH EDGE BREAK 5360641000 (0700807) | |
| EDP # | 0700807 | |
| Workpiece Material(s) | All Materials (White) | |
| Weight | 0.5 oz | 13.0 g |
| Cutting diameter DC | 0.0394 inch | 1 mm |
| Corner radius RE | 0.0012 inch | 0.03 mm |
| Depth of cut maximum APMX | 0.1181 inch | 3 mm |
| Neck Diameter DN | 0.0374 inch | 0.95 mm |
| Head length LH | 0.1575 inch | 4 mm |
| Protruding length LPR | 0.7874 inch | 20 mm |
| Overall length OAL | 1.8898 inch | 48 mm |
| Alpha | 30 | |
| Mounting spigot diameter DCONMS h5 | 0.1575 inch | 4 mm |
| Designation | HCR.SC.1.0.50°.Z4.R.HA.EL DPX62U | |
| Peripheral effective cutting edge count ZEFP | 4 | |
Application & Properties:
Suitable Materials:
