Description

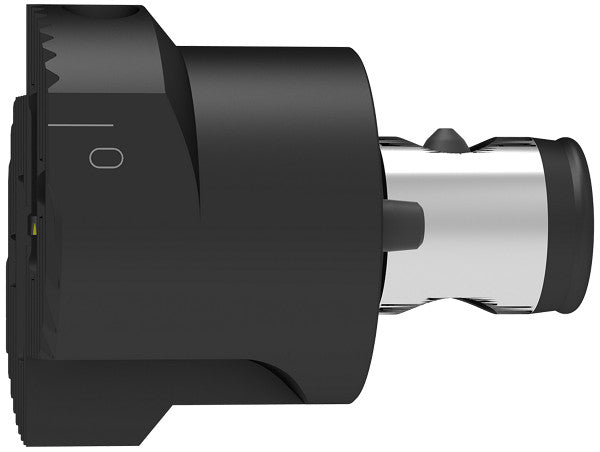

TK.GK.24-32.L.ABS32 MAIN BODY Scope of supply: Clamping plate incl. adjustment and fixing screws Order tool holder (indexable insert) and indexable inserts separately
Mat No: 12566542, Article No: 6287013289
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | CERATIZIT TK.GK.24-32.L.ABS32 MAIN BODY SCOPE OF SUPPLY: CLAMPING PLATE INCL. ADJUSTMENT AND FIXING SCREWS ORDER TOOL HOLDER (INDEXABLE INSERT) AND INDEXABLE INSERTS SEPARATELY 12566542 (0707648) | |
| EDP # | 0707648 | |
| Weight | 8.5 oz | 240.0 g |

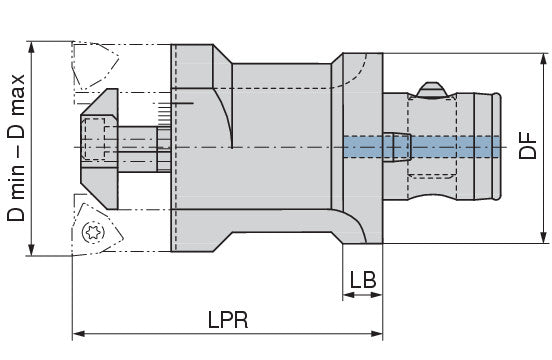

| Dmin - Dmax | 24 - 32 mm | |
| Machine interface size | ABS 32 | |
| Mounting spigot diameter DCONMS | 0.6299 inch | 16 mm |
| Flange diameter DF | 1.2598 inch | 32 mm |
| Protruding length LPR | 2.7559 inch | 70 mm |
| Body length LB | 0.2756 inch | 7 mm |
| nominal size SZID | ABS 32 | |
| Designation | TK.GK.24-32.L.ABS32 | |
