Description
Ceratizit Article Number: 5904837509
Ceratizit Material Number: 12180293
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit 3DX135-03750.00000.R04.S00000.HA.X104 CoreLine Chamfer Milling Cutter 90° UN 5904837509 | |
| EDP # | 0717760 | |
| Weight (1 pc.) | 2.0 oz | 60.0 g |

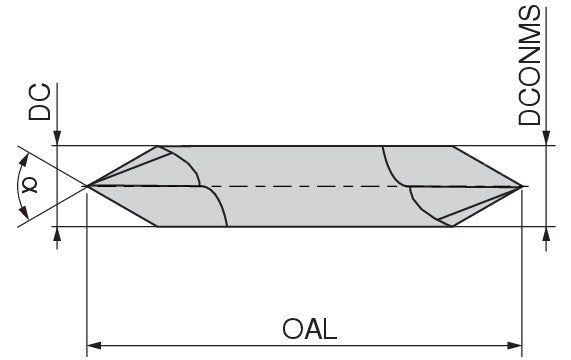

| Cutting diameter / DC -0.0001"/-0.0004" mm | 0.3750" | 9.520 mm |
| Overall length / OAL | 2.5000" | 63.500 mm |
| Mounting spigot diameter / DCONMS -0.0001"/-0.0004" | 0.3750" | 9.520 mm |
| Peripheral effective cutting edge count / ZEFP | 4.0000" | 101.600 mm |
| Cut "A" | 0.2210" | 5.610 mm |
| Profile angle / PRFA | 90 ° | |
| Coating name / Grade (Ceratizit) / COATN | AlTiN | |
| Minimum Extension (DIN 6535 HA) | 0.8465" - 0.9252" | 21.500 - 23.500 mm |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
