Description

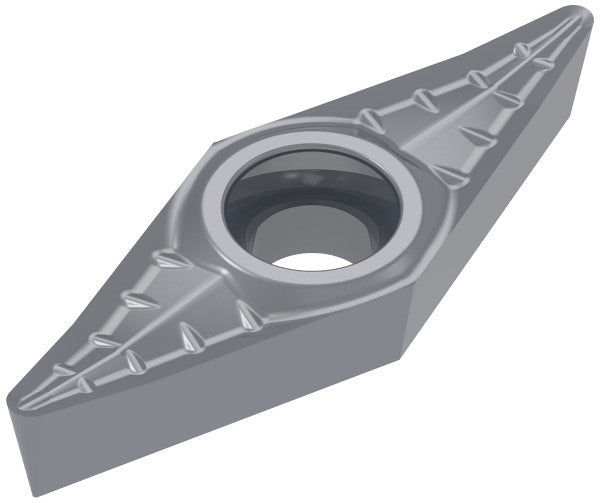

ISO: VCGT 160408FN-25P CTPX710 ANSI: VCGT 332FN-25P CTPX710 CARBIDE TURNING INSERT
Mat No: 12527243, Article No: 7028273000
This product comes in packages of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ISO: VCGT 160408FN-25P CTPX710 ANSI: VCGT 332FN-25P CTPX710 CARBIDE TURNING INSERT 12527243 (0722035) | |
| EDP # | 0722035 | |
| Weight | 0.3 oz | 7.4 g |

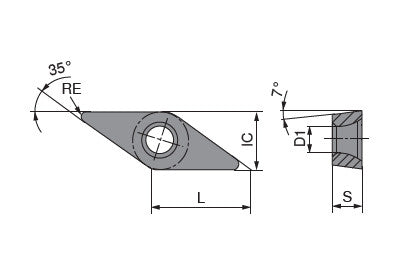

| designation | 160408FN | |
| Corner radius RE | 0.0315 inch | 0.8 mm |
| Cutting edge length L | 0.6535 inch | 16.6 mm |
| Insert thickness S | 0.1874 inch | 4.76 mm |
| Fixing hole diameter D1 | 0.1732 inch | 4.4 mm |
| Inscribed circle diameter IC | 0.3748 inch | 9.52 mm |
| Designation | VCGT 160408FN-25P CTPX710 | |
| Coating name / Grade (Ceratizit) COATN | CTPX710 | |
| Chip breaker (Ceratizit) CBMD | -25P | |
