Description

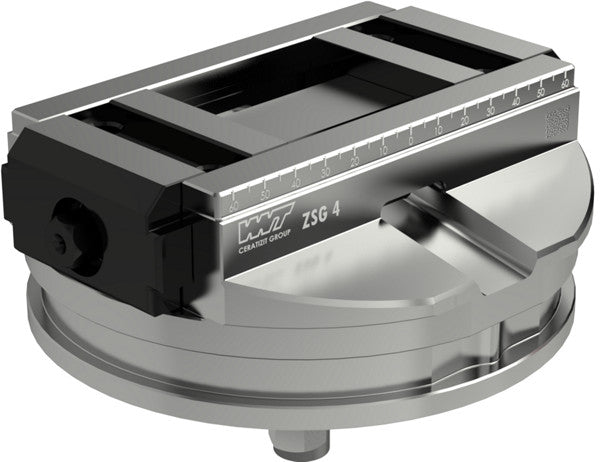

ZSG-4.1.IP.ITS.148.80.130.OSB CENTRIC VICE WITH PALETT Sealed centric vice for Erowa ITS 148 Without system jaws Ball bearing mounted spindle ±0.01 mm repeatability between the clamping processes
Mat No: 8087808900, Article No: 8087808900
This product comes in packages of 1
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ZSG-4.1.IP.ITS.148.80.130.OSB CENTRIC VICE WITH PALETT 8087808900 (0727697) | |
| EDP # | 0727697 | |
| Weight | 197.5 oz | 5600.0 g |
| A | 3.1496 inch | 80 mm |
| B | 5.8268 inch | 148 mm |
| C | 2.8740 inch | 73 mm |
| H | 3.1890 inch | 81 mm |
| Gmax. | 6.1811 inch | 157 mm |
| Maximum clamping force MXC | 25 kN | |
| Drive size DRVS | 0.4724 inch | 12 mm |
| Designation | ZSG-4.1.IP.ITS.148.80.130.OSB | |
