Description
Material Number: 12411227
Article Number: 1082040601
Komet Number (Unpacked): W80 18010.066115
Komet Number (Packed): W8018010066115
This product is priced singly and comes in packages of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

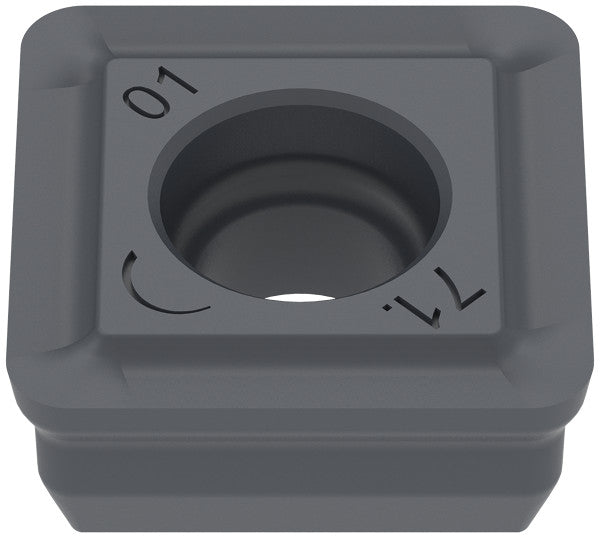

| Name | Ceratizit SOGX 060206SN-01 BK6115 Indexible Insert 12411227 (0728699) | |
| EDP # | 0728699 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Cutting edge length L | 0.2441 inch | 6.2 mm |
| designation | 060206 | |
| Inscribed circle diameter IC | 0.2441 inch | 6.2 mm |
| Fixing hole diameter D1 | 0.1024 inch | 2.6 mm |
| Insert thickness S | 0.1083 inch | 2.75 mm |
| Corner radius RE | 0.0236 inch | 0.6 mm |
Suitable Materials:
