Description
Material Number: 12548094
Article Number: 6260032000
Komet Number (Unpacked): W01 24120.028425
Komet Number (Packed): W0124120028425
This product is priced singly and comes in packs of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

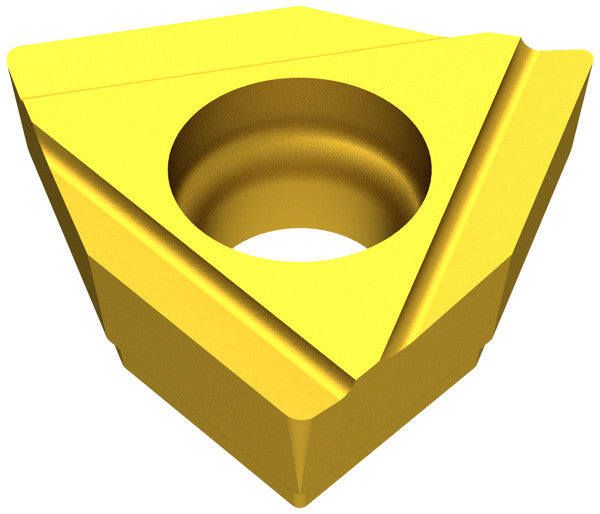

| Name | Ceratizit WOHX 05T302EL-G12 BK8425 Indexible Insert 12548094 (0730450) | |
| EDP # | 0730450 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.1 oz | 2.4 g |
| designation | 05T302EL | |

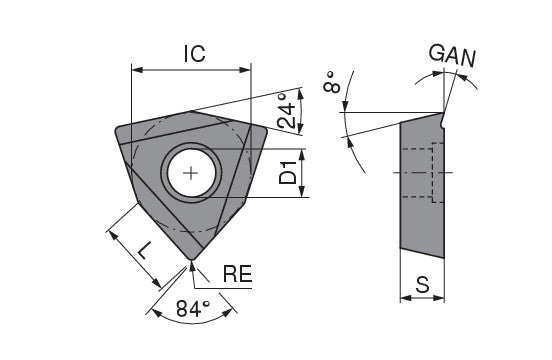

| Corner radius RE | 0.0079 inch | 0.2 mm |
| Cutting edge length L | 0.2087 inch | 5.3 mm |
| Insert thickness S | 0.1496 inch | 3.8 mm |
| Fixing hole diameter D1 | 0.1122 inch | 2.85 mm |
| Inscribed circle diameter IC | 0.315 inch | 8 mm |
| Chip breaker (Ceratizit) CBMD | -G12 | |
| Coating name / Grade (Ceratizit) COATN | BK8425 | |
Suitable Materials:
