Description
Material Number: 12548323
Article Number: 1082100415
Komet Number (Unpacked): W29 18150.048430
Komet Number (Packed): W2918150048430
This product is priced singly and comes in packs of 10
Ceratizit is a large tooling company based in Luxembourg (Europe). The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!

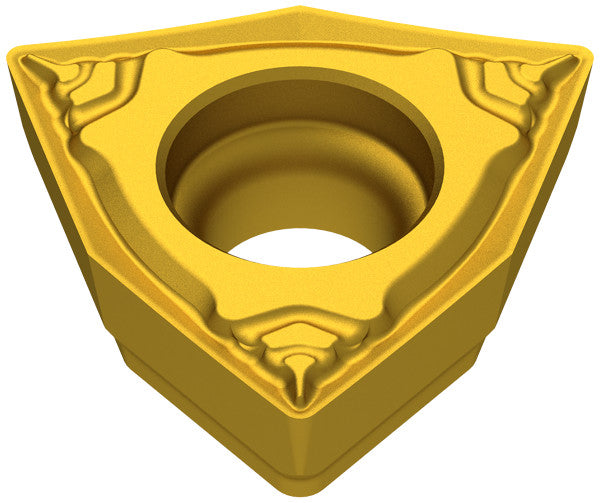

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WOGX 040304-15 BK8430 Indexible Insert 12548323 (0730699) | |
| EDP # | 0730699 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 0.04 oz | 1.2 g |
| Cutting edge length L | 0.1614 inch | 4.1 mm |
| designation | 040304 | |
| Inscribed circle diameter IC | 0.25 inch | 6.35 mm |
| Fixing hole diameter D1 | 0.1004 inch | 2.55 mm |
| Insert thickness S | 0.1252 inch | 3.18 mm |
| Corner radius RE | 0.0157 inch | 0.4 mm |
Suitable Materials:
