Description
Ceratizit Article Number: 1087694091
Ceratizit Material Number: 14476824
Ceratizit Komet Number (Unpacked): U60 59400
Ceratizit Komet Number (Packed): U6059400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

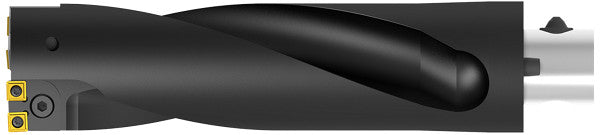

| Name | Ceratizit KUB-P.CS.5.3D.94-96.ABS100 KOMET Pentron Basic Element 1087694091 | |
| EDP # | 0760701 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 459.0 oz | 13000 g |
| Product-Carbon-Footprint | B | |

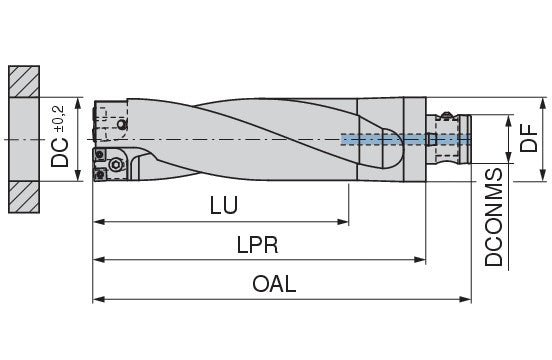

| Cutting edge Ø - range / DC | 0.1575" - 3.7795" | 4.000 - 96.000 mm |
| Mounting spigot diameter / DCONMS | 2.2047" | 56.000 mm |
| Flange diameter / DF | 3.9370" | 100.000 mm |
| Overall length / OAL | 16.6929" | 424.000 mm |
| Protruding length / LPR | 14.5276" | 369.000 mm |
| Usable length / LU | 11.3386" | 288.000 mm |
| Insert | SOGX 130508 | |
| torque moment | 42 Nm | |
| Machine interface size | ABS 100 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
