Description
Ceratizit Article Number: 50800050
Ceratizit Material Number: 5080005000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit S300.01.HB.16.23,0.38,5.IK ModuSet - Circular Milling Cutter 50800050 | |
| EDP # | 0769554 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 150 g |
| Size | 01 | |

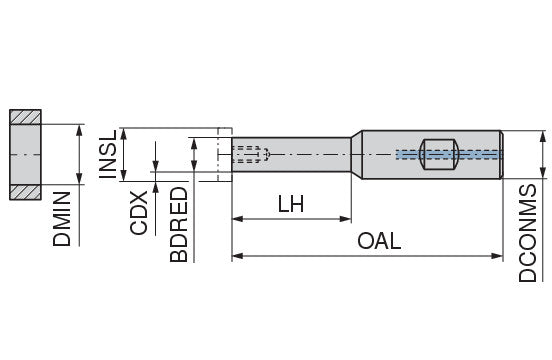

| Head length / LH | 15157.0000" | 384987.800 mm |
| Cutting depth maximum / CDX | 1358.0000" | 34493.200 mm |
| Mounting spigot diameter / DCONMS h6 | 6299.0000" | 159994.600 mm |
| Overall length / OAL | 34252.0000" | 870000.800 mm |
| Body diameter, reduced / BDRED | 6339.0000" | 161010.600 mm |
| Minimum bore diameter / DMIN | 9843.0000" | 250012.200 mm |
| Insert length / INSL | 0.9055" | 23.000 mm |
| torque moment | 5,5 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
