Description
Ceratizit Article Number: 50841016
Ceratizit Material Number: 5084101600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

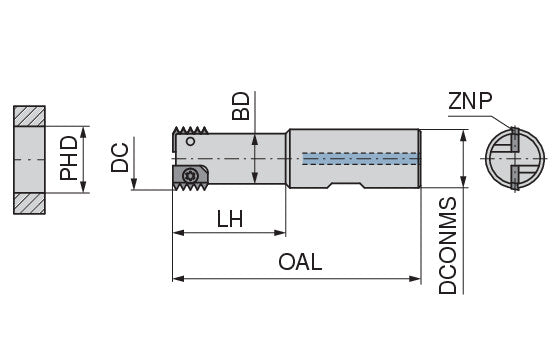

| Name | Ceratizit GZG.14,5/16.HB.16.30,0.IK ModuThread - Circular Milling Cutter 50841016 | |
| EDP # | 0769610 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 112 g |
| Insert length / INSL | 5.7087" | 145.000 mm |
| Cutting diameter / DC | 0.6299" | 16.000 mm |
| Head length / LH | 1.1811" | 30.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Overall length / OAL | 3.0709" | 78.000 mm |
| Neck diameter (BD) / BD | 5.0000" | 127.000 mm |
| Peripheral mounted insert count / ZNP | 1 | |
| Premachined hole diameter / PHD | 7.2835" | 185.000 mm |
| torque moment | 3,8 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
