Description
The 'White' line of tooling is reasonably suitable for any material.

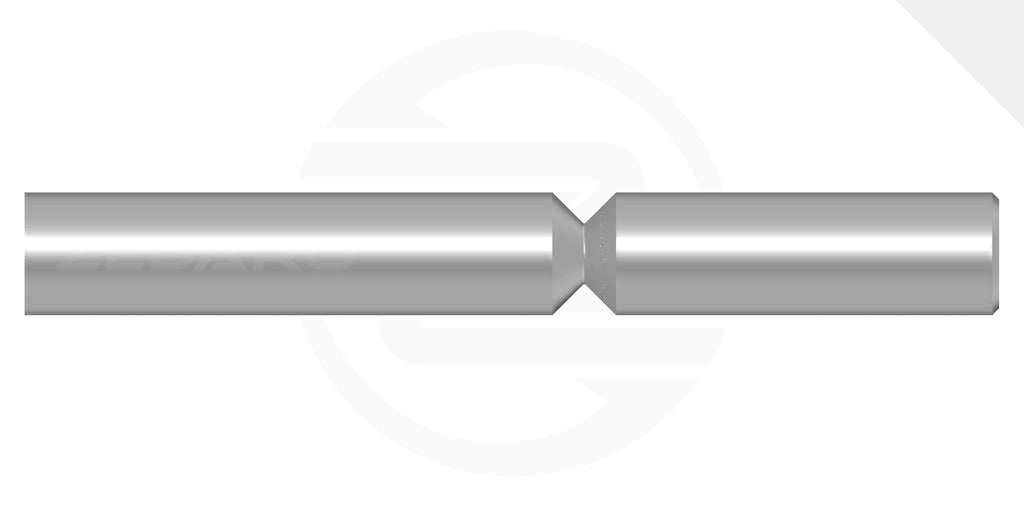

The 'Breaker' line is a special purpose high-speed probing tool used to detect incorrect part placement using a clean breaking stylus that can be easily replaced.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

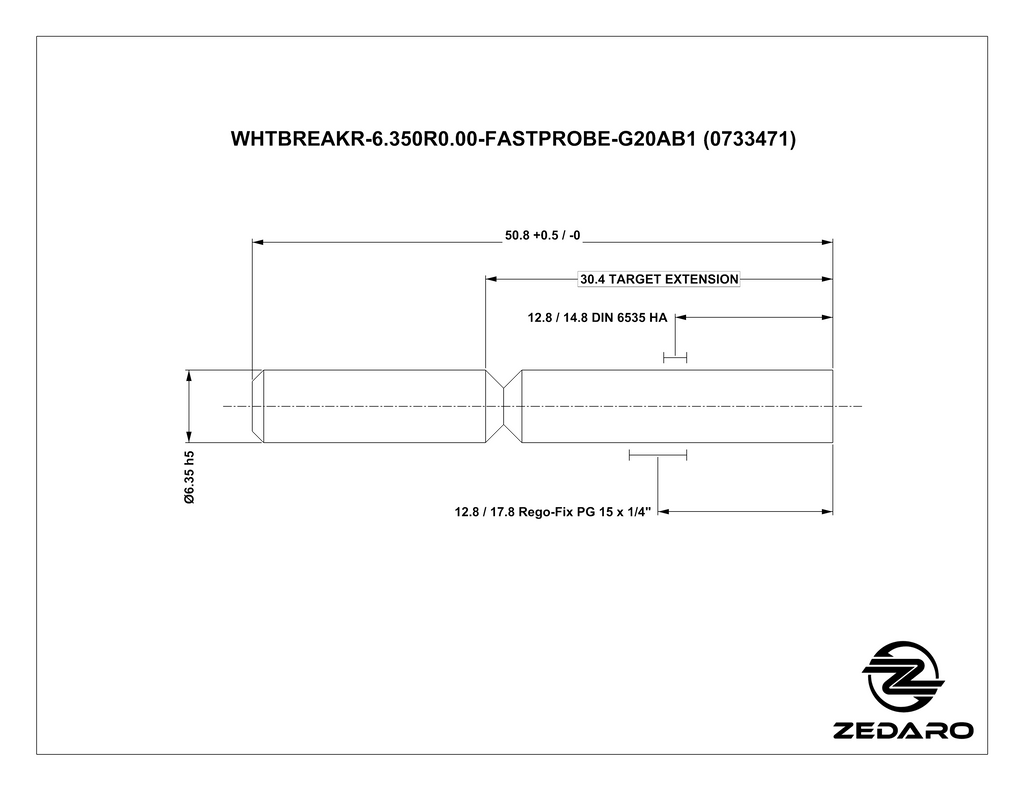

| Name | WHTBREAKR-6.350R0.00-FASTPROBE-G20AB1 | |
| EDP # | 0733471 | |
| Material | Reasonably Suitable for All Materials | Application | Probing (Breaker) |
| Form | End Mill - Flat | |
| Cutting Diameter | 0.2500" | 6.350 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | NaN" | NaN mm |
| Reach | NaN" | NaN mm |
| Minimum Extension | NaN" | NaN mm |
| Maximum Extension | 1.6" | 41.3 mm |
| Shank Diameter h6 | 0.2500" | 6.350 mm |
| Overall Length | 2.0" | 51 mm |
| Cutting Edges | 0 | |
| Tolerance Class | h9 | |
