Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Shredder' line is a general purpose high-speed roughing and finishing tool designed for machine tools capable of spindle speeds greater than 20K rpm.
'R' form tools are the classic end-mill shape, straight sides (flanks) with corners ranging from sharp (flat tip) to completely round (ball tip). This form is the most common of all, and good for almost everything.
| Tool Properties | ||
|---|---|---|

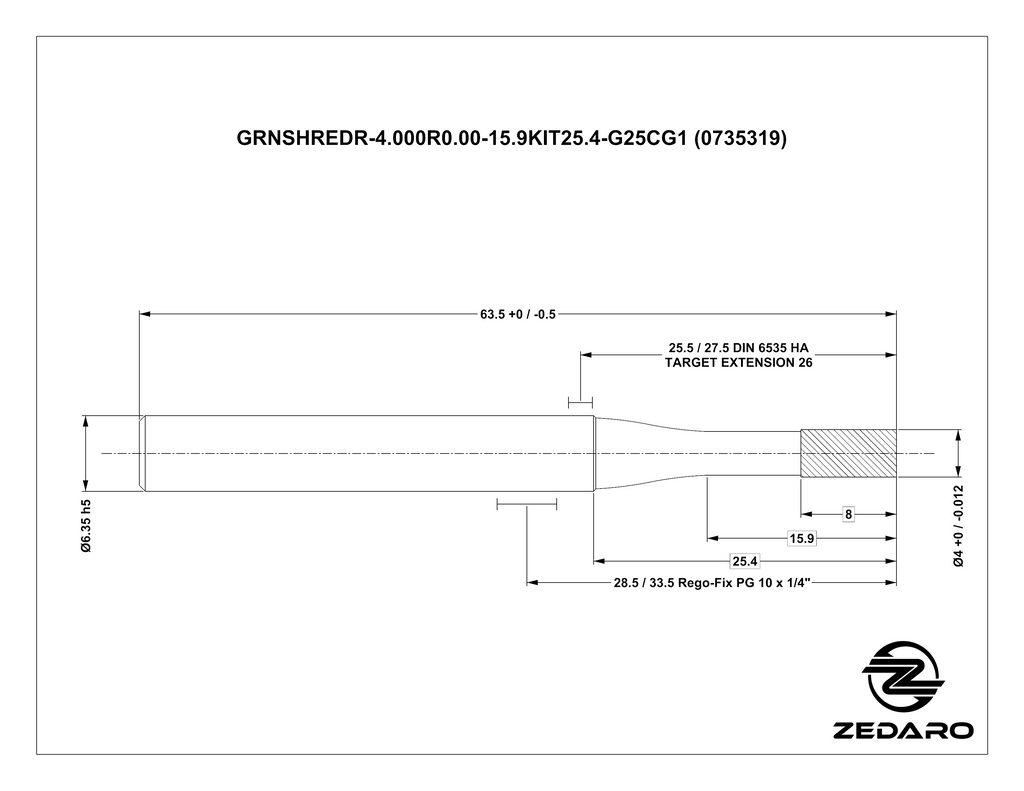

| Name | GRNSHREDR-4.000R0.00-15.9KIT25.4-G25CG1 | |
| EDP # | 0735319 | |
| Material | Wrought Aluminum | Application | General Milling >20k RPM (Shredder) |

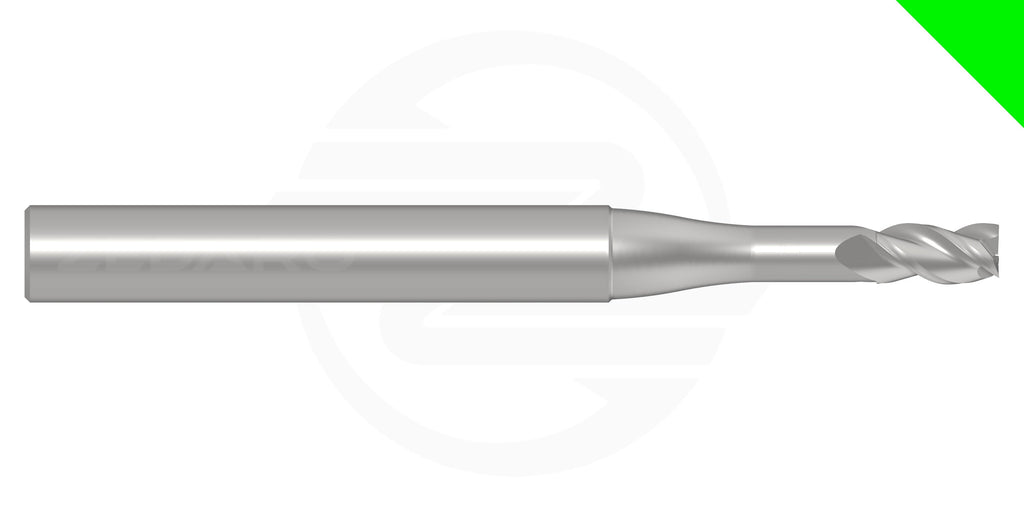

| Form | End Mill - Flat | |
| Cutting Diameter | 0.1575" | 4.000 mm |
| Corner Radius | 0.0000" | 0.000 mm |
| Taper per Side | 0.0° | |
| Length of Cut | 0.3150" | 8.000 mm |
| Reach | 0.6260" | 15.900 mm |
| Minimum Extension | 1.0" | 25.4 mm |
| Maximum Extension | 2.1" | 54.0 mm |
| Shank Diameter h5 | 0.2500" | 6.350 mm |
| Overall Length | 2.5" | 63 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h7 | |
