Description
Mapal Order Number: 30320125
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

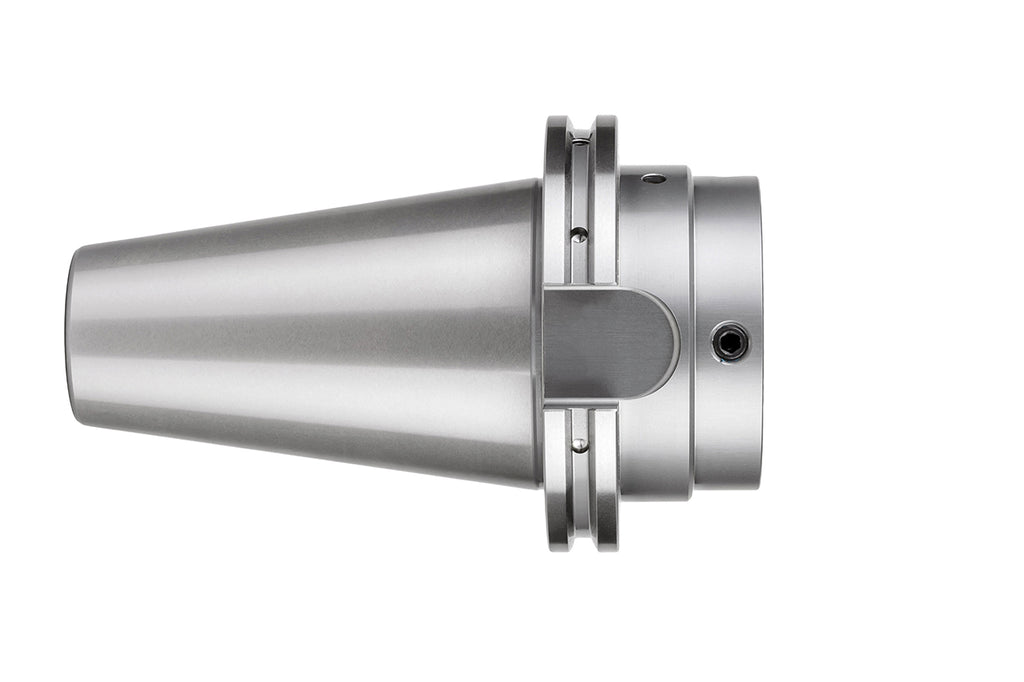

| Name | Mapal OS-AD-CAT030-MOD070-050-11 Adapter 30320125 | |
| EDP # | 0669460 | |
| Machine Connection | CAT (ASME B 5.50) | |
| Size Machine Connection | 30 | |
| Technology | Adapter | |
| d1 | 2.7559" | 70.000 mm |
| d2 | 2.7559" | 70.000 mm |
| l1 | 1.9685" | 50.000 mm |
| l2 | 0.5906" | 15.000 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Without Length Adjustment | |
| Material Group | ||
Product Features:
- The MAPAL modular adapter allows µm-precise adjustment of the runout of tools and tool holders (available as hydraulic and thermo chucks) with a modular shank, as well as adaptations with a flange adapter. Accordingly, it supports achieving the highest surface qualities as well as cutting parameters and allows highest form and positional tolerances.
Technical Reference Files:
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
