Description
Mapal Order Number: 31181480
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

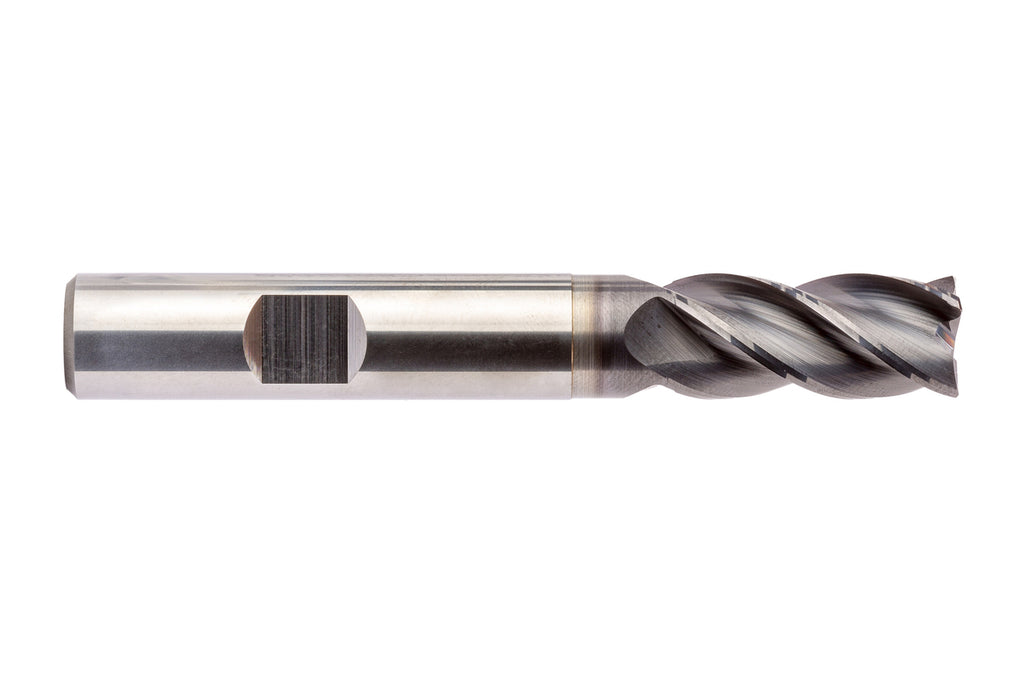

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCM108-0500Z04R-F0010HB-HP921 OptiMill®-Inox-HPC 31181480 | |
| EDP # | 0675451 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.1969" | 5.000 mm |
| Shaft Diameter (d2) | 0.2362" | 6.000 mm |
| Total Length (l1) | 2.2441" | 57.000 mm |
| Length Of Cutting Edge (l2) | 0.5118" | 13.000 mm |
| Neck Length (l3) | 0.6102" | 15.500 mm |
| Corner Bevel Width Cx45° | 0.0039" | 0.100 mm |
| Number Of Cutting Edges (z) | 4 | |
| Cooling | External Cooling | |
| Shank Type | HB | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 0.7480" - 0.8268" | 19.000 - 21.000 mm |
Product Features:
- The OptiMill-Inox-HPC four-edged corner cutter is a versatile tool. The solid carbide end mill can perform both roughing and finishing operations. Its special cutting edge preparation generates optimal surfaces with particularly low vibration running. Thanks to its AlTiN-based multilayer coating, it is ideally suited for machining stainless steel.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
