Description
Mapal Order Number: 31199092
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

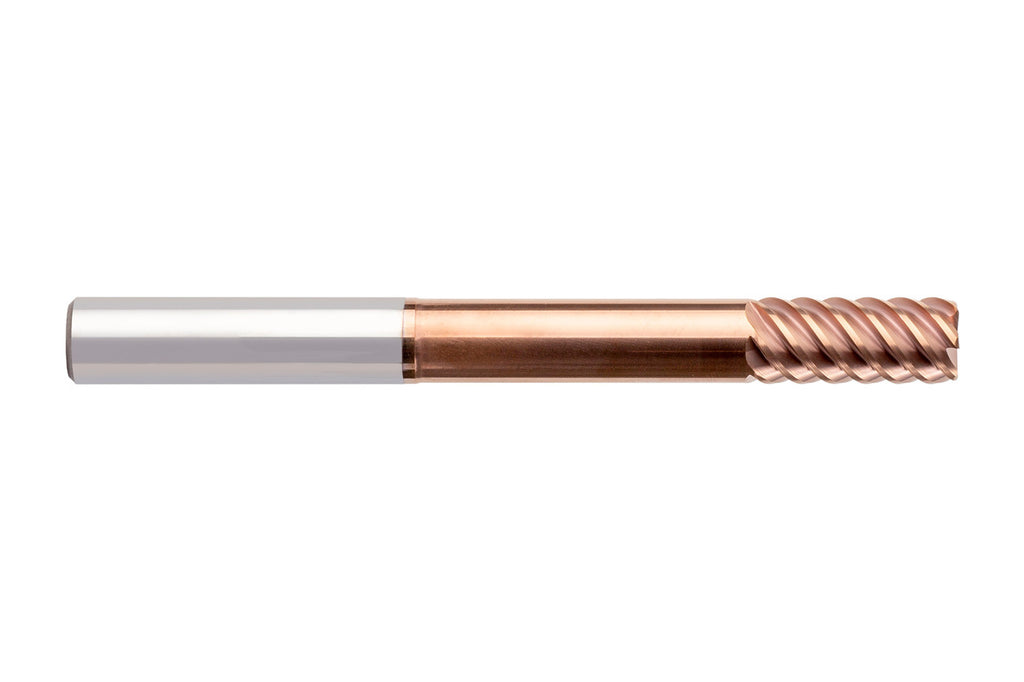

| Name | Mapal SCM124-0600Z06R-S-HA-HP808 OptiMill®-Hardened-Finish 31199092 | |
| EDP # | 0675462 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.2362" | 6.000 mm |
| Shaft Diameter (d2) | 0.2362" | 6.000 mm |
| Cylindrical Part Diameter (d3) | 0.2283" | 5.800 mm |
| Total Length (l1) | 3.1496" | 80.000 mm |
| Length Of Cutting Edge (l2) | 0.5118" | 13.000 mm |
| Neck Length (l3) | 1.6535" | 42.000 mm |
| Number Of Cutting Edges (z) | 6 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 1.6535" - 1.7323" | 42.000 - 44.000 mm |
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
