Description
Mapal Order Number: 30936150
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

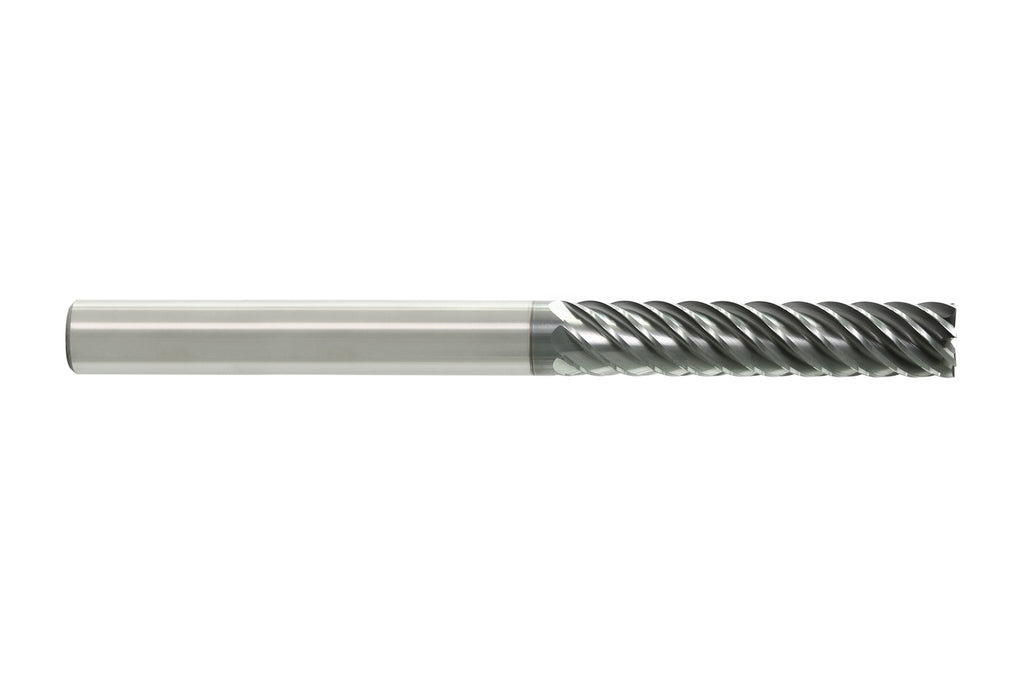

| Name | Mapal SCM830-1400Z07R-F0014HA5-HP209 OptiMill®-Uni-HPC-Finish 30936150 | |
| EDP # | 0675885 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.5512" | 14.000 mm |
| Shaft Diameter (d2) | 0.5512" | 14.000 mm |
| Total Length (l1) | 4.8031" | 122.000 mm |
| Length Of Cutting Edge (l2) | 2.7559" | 70.000 mm |
| Corner Bevel Width Cx45° | 0.0055" | 0.140 mm |
| Number Of Cutting Edges (z) | 7 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Cutting Material | HP209 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 2.9528" - 3.0315" | 75.000 - 77.000 mm |
Product Features:
- The OptiMill-Uni-HPC-Finish finishing cutter with seven cutting edges produces the highest surface finishes in the shortest possible time. Due to a stable core diameter, the tool tool stiffness is considerably increased, which prevents the tool from being displaced. As a result, the highest surface finishes are achieved in a process-safe manner even with infeeds of up to 5xD.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
