Description
Mapal Order Number: 31054582
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.

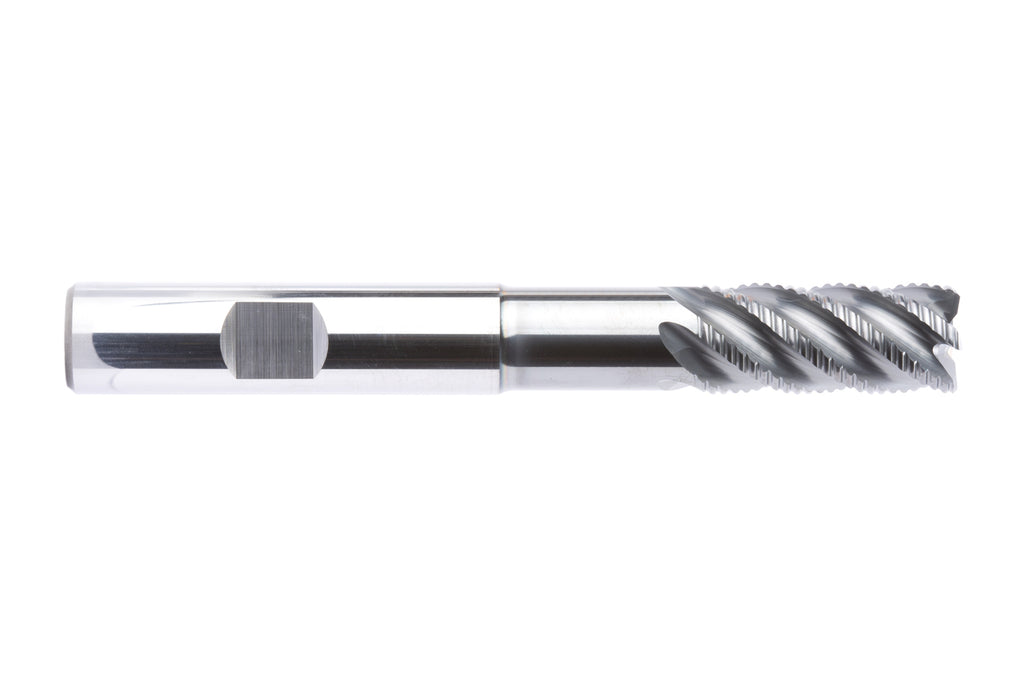

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCM900-2000Z05R-F0100HB-HP723 OptiMill®-Uni-Wave 31054582 | |
| EDP # | 0676005 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.7874" | 20.000 mm |
| Shaft Diameter (d2) | 0.7874" | 20.000 mm |
| Cylindrical Part Diameter (d3) | 0.7283" | 18.500 mm |
| Total Length (l1) | 4.9606" | 126.000 mm |
| Length Of Cutting Edge (l2) | 1.6142" | 41.000 mm |
| Neck Length (l3) | 2.9134" | 74.000 mm |
| Corner Bevel Width Cx45° | 0.0394" | 1.000 mm |
| Number Of Cutting Edges (z) | 5 | |
| Cooling | External Cooling | |
| Shank Type | HB | |
| Cutting Material | HP723 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 2.9134" - 2.9921" | 74.000 - 76.000 mm |
Product Features:
- The OptiMill®-Uni-Wave corner milling cutter was specially developed for roughing steel and cast iron. Due to its innovative cord profile, it enables very short chips and very good chip removal. An uneven tool pitch favours smooth running and reduces vibrations. The five-flute cutter impresses with up to 25 percent higher process efficiency compared to a four-flute cutter.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
