Description
Mapal Order Number: 31153688
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal MBN107-006-0030-0200X050-HP818 OptiMill®-3D-BN-Hardened 31153688 | |
| EDP # | 0681352 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.0236" | 0.600 mm |
| Shaft Diameter (d2) | 0.1575" | 4.000 mm |
| Cylindrical Part Diameter (d3) | 0.0220" | 0.560 mm |
| Total Length (l1) | 1.9685" | 50.000 mm |
| Length Of Cutting Edge (l2) | 0.0276" | 0.700 mm |
| Neck Length (l3) | 0.0787" | 2.000 mm |
| Corner Radius (R) | 0.0118" | 0.300 mm |
| Number Of Cutting Edges (z) | 2 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Cutting Material | MX17-TN | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 0.7874" - 0.8661" | 20.000 - 22.000 mm |
Product Features:

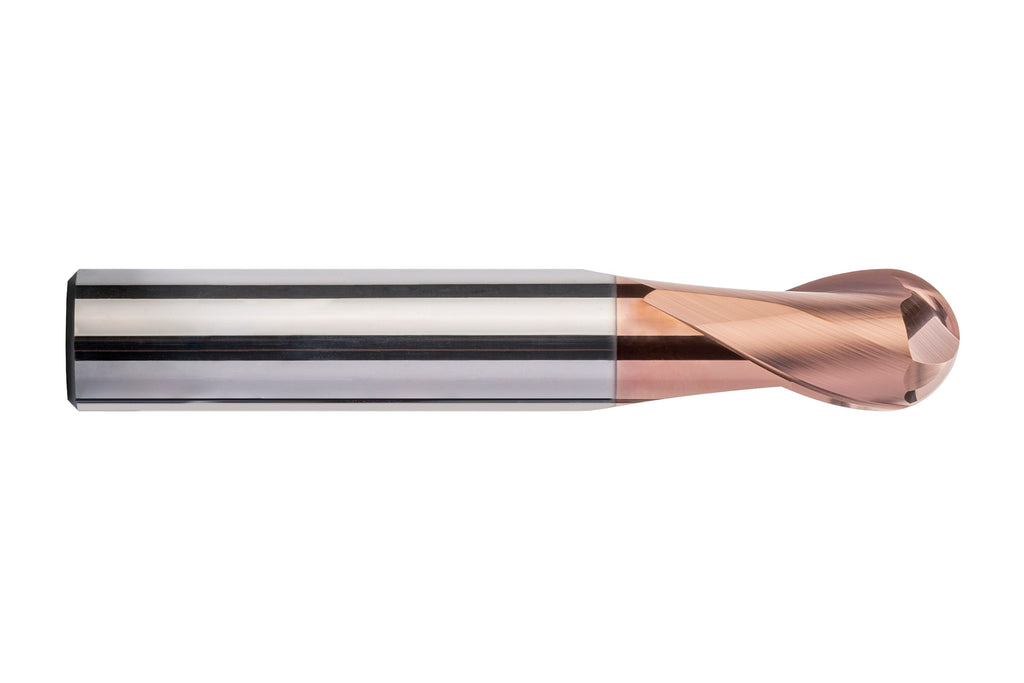

- The OptiMill-3D-BN-Hardened ball end mill cutter has been specifically designed for machining materials up to 68 HRC. It is characterized by high radius accuracy, making it ideal for high-precision machining of 3D contours. In addition to an extremely heat-resistant coating and a special carbide substrate, these tools are distinguished by dimensions and geometries tailored specifically to mold making.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a hemispherical tip. This form is very versatile and perfect for 'point milling' 3D surfaces.
