Description
Mapal Order Number: 31153053
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Mapal SCM105-1200ZGVR-HA-HC117 OptiMill®-Graphite-MT 31153053 | |
| EDP # | 0705832 | |
| Product Class | Expert-Line | |
| Diameter (d1) | 0.4724" | 12.000 mm |
| Shaft Diameter (d2) | 0.4724" | 12.000 mm |
| Total Length (l1) | 3.3465" | 85.000 mm |
| Length Of Cutting Edge (l2) | 1.1811" | 30.000 mm |
| Number Of Cutting Edges (z) | 2 | |
| Cooling | External Cooling | |
| Shank Type | HA | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 1.4961" - 1.5748" | 38.000 - 40.000 mm |
Product Features:

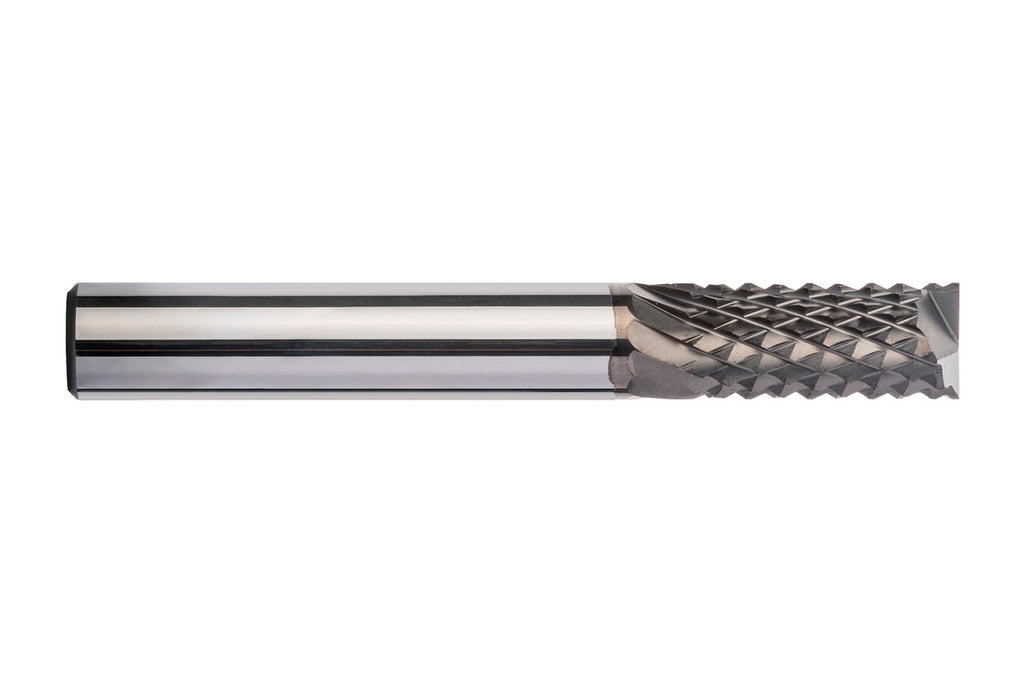

- The OptiMill®-Graphite-MT multi-tooth milling cutter was specially developed for roughing graphite electrodes. The MAPAL multi-tooth cutter is particularly suitable for very high stock removal rates thanks to its diamond coating and up to 16 cutting edges.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
