Description
Mapal Order Number: 30242416
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

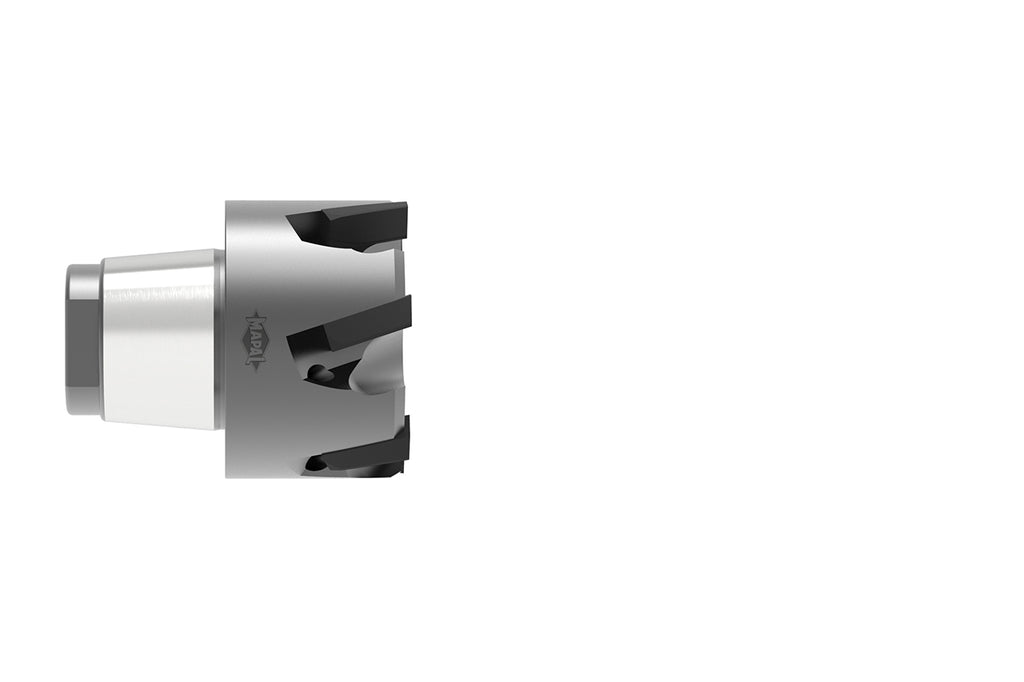

| Name | Mapal HPR110Ø60.0H7ME1G-CU134 30242416 | |
| EDP # | 0733556 | |
| Connection Type | HFS | |
| HFS Connection Size | 24 | |
| Type Of Bore | Through Bore | |
| d1 | 2.3622" | 60.000 mm |
| l1 | 1.5748" | 40.000 mm |
| l2 | 0.3150" | 8.000 mm |
| l4 | 0.9843" | 25.000 mm |
| l5 | 0.9843" | 25.000 mm |
| Tolerance | H7 | |
| Number Of Cutting Edges (z) | 8 | |
| Material Group | ||
Product Features:
- The HPR exchangeable head reamer by MAPAL offers precise concentricity and exchange accuracy of 3 μm, along with easy handling during tool head assembly and disassembly. The internal cooling system allows coolant to directly exit at the cutting edges, ensuring efficient cooling. Consequently, the HPR reamers are suitable for minimum quantity lubrication and provide high precision and tool life. The standard range includes various series for through-holes and blind holes.
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
