Mapal Order Number: 31430835
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

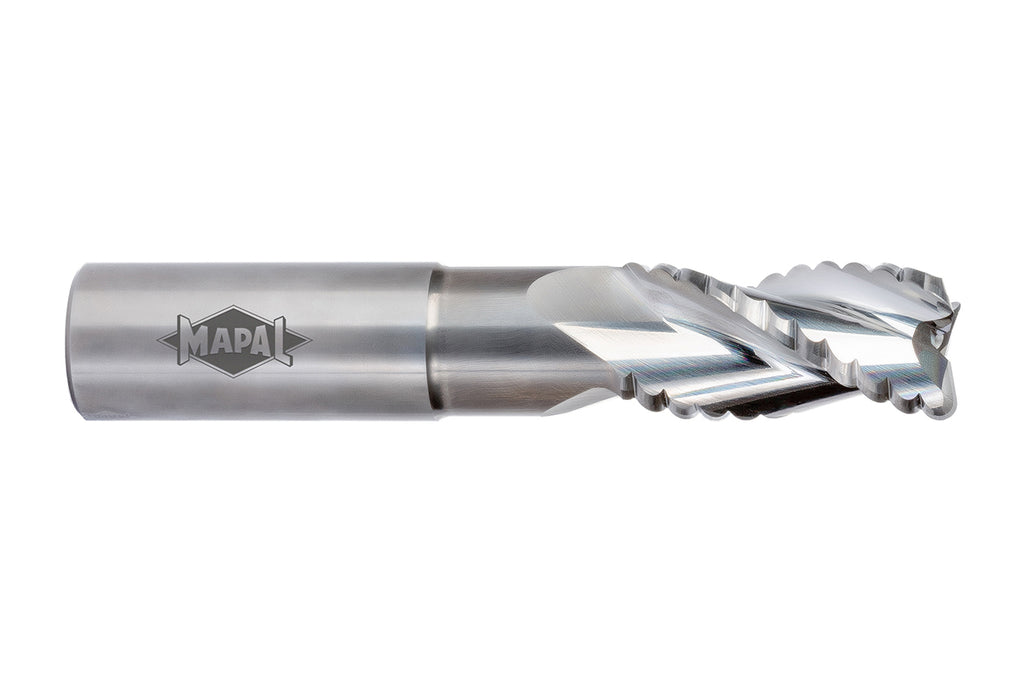

| Name | Mapal SCM109-2500Z03R-R0300HA-HU318 OptiMill®-Alu-Wave 31430835 | |
| EDP # | 0734787 | |
| Product Class | Performance-Line | |
| Diameter (d1) | 0.9843" | 25.000 mm |
| Shaft Diameter (d2) | 0.9843" | 25.000 mm |
| Cylindrical Part Diameter (d3) | 0.9252" | 23.500 mm |
| Total Length (l1) | 5.3543" | 136.000 mm |
| Length Of Cutting Edge (l2) | 1.6535" | 42.000 mm |
| Neck Length (l3) | 3.1496" | 80.000 mm |
| Corner Radius (R) | 0.1181" | 3.000 mm |
| Number Of Cutting Edges (z) | 3 | |
| Cooling | Internal Cooling | |
| Shank Type | HA | |
| Cutting Material | HU318 | |
| Material Group | ||
| Minimum Extension (DIN 6535 HA) | 3.0709" - 3.1496" | 78.000 - 80.000 mm |
Product Features:
- The OptiMill-Alu-Wave corner milling cutter is a newly developed roughing cutter for machining aluminum materials. With its unique cord roughing geometry, it produces short chips and ensures a smooth cutting behavior. The cutter has a central cooling channel that minimizes the formation of build-up cutting edges and safely remove the chips.
Technical Reference Files:
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip and rounded corners. This form is perfect for prismatic features which require rounded fillets at the base of wall features, or, optimizing complex surfacing.
