Description
Mapal Order Number: 30630805
Mapal, Founded in Aalen, Germany in 1950
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

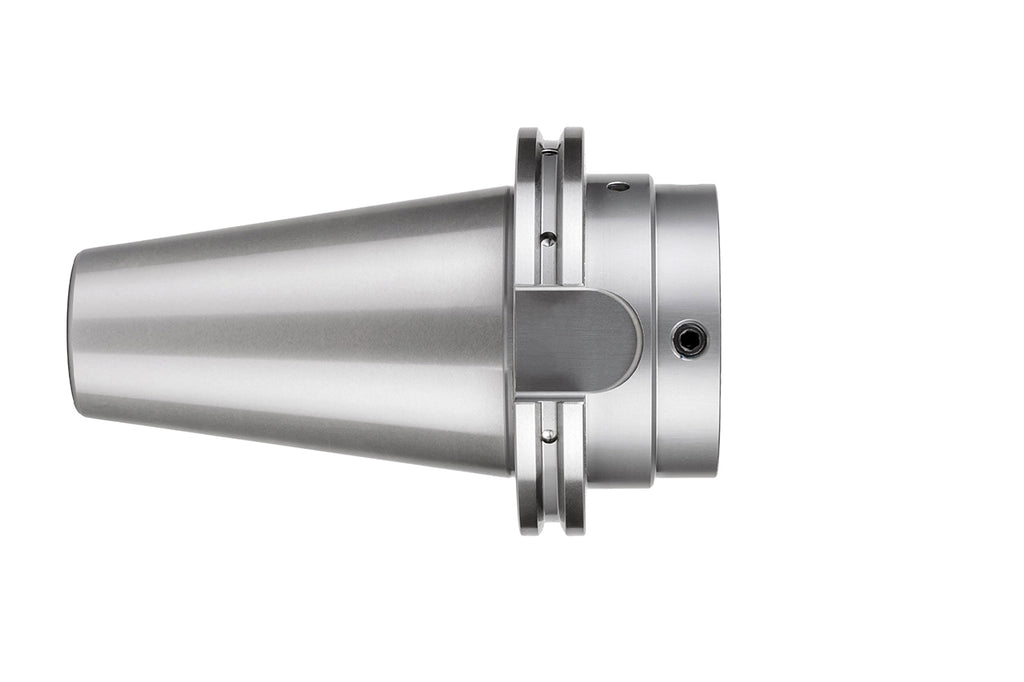

| Name | Mapal OS-AD-AD-FC050-MOD140-060-11 Adapter 30630805 | |
| EDP # | 0669446 | |
| Machine Connection | BT (FC) | |
| Size Machine Connection | 50 | |
| Technology | Adapter | |
| d1 | 5.5118" | 140.000 mm |
| d2 | 5.5118" | 140.000 mm |
| l1 | 2.3622" | 60.000 mm |
| l2 | 0.8228" | 20.900 mm |
| Coolant Supply | Internal | |
| Coolant Outlet | Axial Concentric | |
| Length Adjustment | Without Length Adjustment | |
| Material Group | ||
Product Features:
- The MAPAL modular adapter allows µm-precise adjustment of the runout of tools and tool holders (available as hydraulic and thermo chucks) with a modular shank, as well as adaptations with a flange adapter. Accordingly, it supports achieving the highest surface qualities as well as cutting parameters and allows highest form and positional tolerances.
Technical Reference Files:
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
